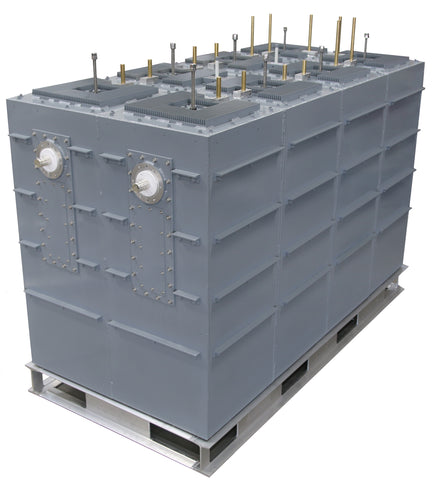

VHF Band I & III Mask Filters

  • Sale
  • Regular price

REQUEST A QUOTE if you are interested in this product.



AAT VHF Band I & III Mask Filters are fabricated using high quality aluminum, brass, and copper materials.

1.5 - 20 kW Modules

  • Band: VHF I & III
  • Cross Coupled
  • High quality aluminum, brass, and copper materials.
  • Digital or Analog Systems
  • No finger stock used
  • 6 MHz (Standard), 7 MHz, or 8 MHz Bandwidth

SPECIFICATIONS

Band

VHF I & III

Input Power Rating

1.5 - 20 kW

Insertion Loss

< 0.25 dB

Cooling Method

Convection or Forced

Rejection

> 50 dB

Group Delay

< 300 ns

Connections Available:

EIA Flange

STANDARD MODELS

Model

Power Rating

6-Cavity

Weight

VHFI-6-M

1.5 - 20 kW

32’’ X 34’’ X 72’’

350 -1400 lbs

VHFIII-6-M

1.5 - 20 kW

32’’ X 34’’ X 26’’

300 - 800 lbs



Operating Altitude: Ratings are based on elevations up to 2800’. Derating begins after 2800’


Download PDF

*Note: The product price does not include shipping expenses. This product ships via freight. The shipping cost will be calculated and invoiced after checkout. An AAT team member will contact you after checkout to determine the operating frequencies and shipping preference.
