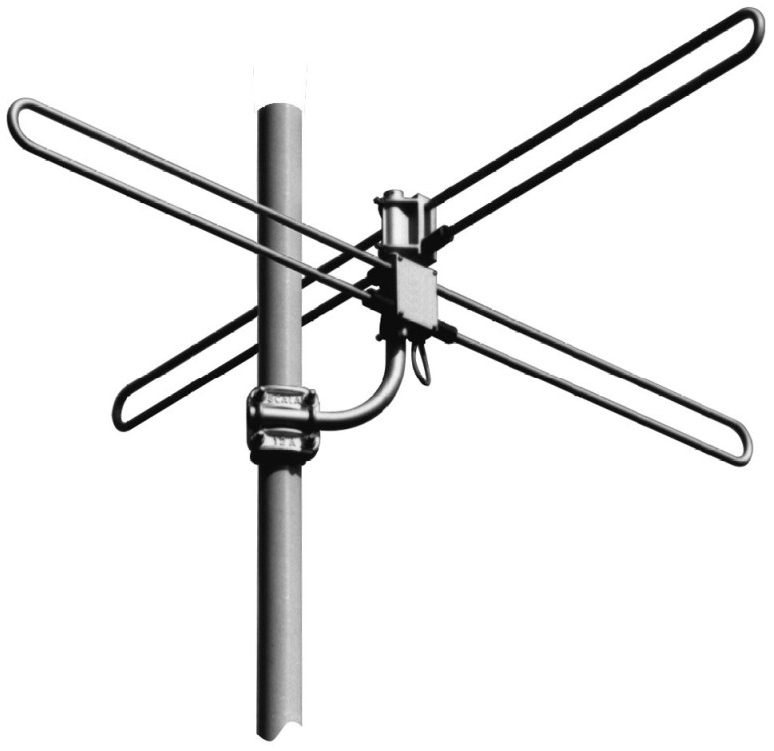

The Scala TVO is a ruggedly built, horizontally polarized VHF-TV transmit antenna with an omnidirectional pattern.
Like all Scala antennas, the TVO is made of the finest materials using state of the art electrical and mechanical designs resulting in superior performance and long service life.
The TVO is available as a single bay antenna or in vertically stacked arrays for additional gain.
|
Specifications |
|
| Frequency Range | 54-216 MHz |
| Gain | -3 dBd |
| Power Gain | 0.5 |
| Bandwidth | 6 MHz |
| Impedance | 50 or 75 ohms |
| VSWR | <1.3:1 |
| Input Power Rating | 100 watts (75 ohms), 250 watts (50 ohms) |
| Mounting Member | For masts of 2.375 inch OD |
| Dimensions | Height: 18 in |
| Net Weight | 9 oz |
| Wind Load @ 100 MPH (Front) | 52 lbf |
| Wind Survival Rating | 120 mph |
