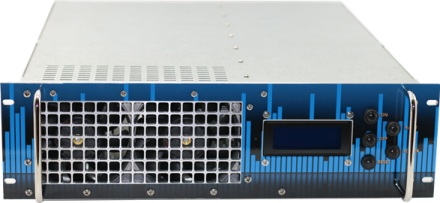

STL 950 MHz Amplifiers
- Solid state power MOSFET Technology
- Analog or Digital Emissions, Class A
- Frequency Agile 940-960 MHz
- Efficient state-of-the-art transistors and power supplies
- Extensive monitoring via Ethernet and Remote Samples
- 2 Year Warranty
|
RF CHARACTERISTICS |
|
|
Output Impedance |
50 Ω |
|
Input Power |
5 Watts Max |
|
Frequency Range |
944 - 960 MHz |
|
Nominal Output Power |
Model and modulation type dependent, 15 Watt and 60 Watt models available |
|
Power Level |
Adjustable 1 – 105%, Linear to input |
|
Output Connector |
Type N Female |
|
Input Connector |
Type BNC |
|
Spurious Emissions |
Compliant to Industry Canada BETS-6 and FCC 73.317 |
|
ELECTRICAL |
|
|
AC Input Voltage |
120 - 250 Vac |
|
Overall Power Consumption |
Typically 100 watts |
|
Overall Efficiency |
>20% |
|
PA Power Consumption |
Typically 90 watts |
|
PA Efficiency |
>25% Class A |
|
INTERFACE |
||
|
Remote Port |
Control: |
Reset, On/Off (external exciter) |
|
|
Monitor: |
Forward/reflected RF level, control PCB Vcc |
|
|
Flags: |
VSWR, Current, Voltage, Forward Power |
|
Ethernet |
Control: |
Reset, On/Off (external exciter) |
|
|
Monitor: |
Forward/reflected RF level, DC pallet voltage, RF input level, temperature, VSWR trip point, model |
|
|
Flags: |
DC pallet voltage, current, VSWR |
|
LCD Display: |
Monitor: |
Forward/reflected RF level, DC pallet voltage, DC current |
|
|
Flags: |
VSWR, Current, Voltage, Forward Power, Reflected Power |
|
PHYSICAL FEATURES |
||
|
Minimal Rack Space |
3U |
U x 25”- 36’’ (D) x 19” (W) |
|
Lightweight Enclosures |
Aluminum |
|
|
Operating Temperature |
0 to +59° C |
|
|
Humidity |
90%, non-condensing |
|
