FEATURES
-
Heavy-duty fiberglass radome to protect antenna.
-
Balanced driven element for superior performance in icing conditions.
-
Internal balun and dipole feedpoint sealed within the boom assembly.
-
Anodized aluminum pipe and tubing.
-
Heavy-duty aluminum castings and stainless steel hardware.
-
Entire antenna at DC ground potential.
-
Dual and quad arrays available.

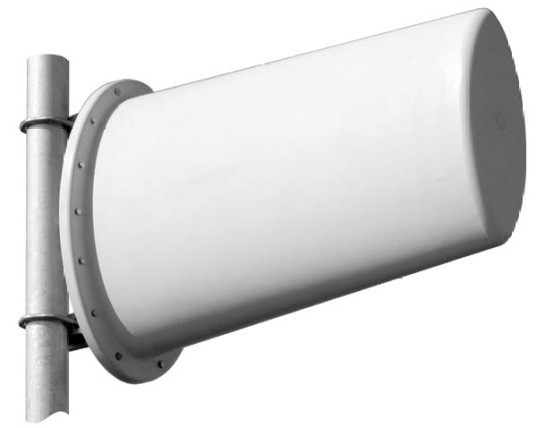

The Scala RA5-400B broadband yagi antenna is intended for use in professional fixed-station applications in the 406—512 MHz band.
|
Specifications |
|
| Frequency Range | 406-512 MHz |
| Gain | 10 dBd (12.15 dBi) |
| Impedance | 50 ohms |
| VSWR | <1.3:1 ± 1 MHz, <1.5:1 ± 3 MHz |
| Front-to-Back Ratio | >23 dB |
| Input Power Rating | 250 watts |
| H-Plane Beamwidth | 66 degrees (half-power) |
| E-Plane Beamwidth | 50 degrees (half-power) |
| Mounting Member | Kits Available for masts of 2.375 - 4.5 inch OD |
| Dimensions | Height: 26 in x Width: 17 in x Length: 12 in |
| Net Weight | 16 lb |
| Wind Survival Rating | 120 mph |
