FEATURES
-
High gain, half-parabolic design.
-
Lower weight and surface area than a parabolic dish or grid.
-
Very rugged construction using anodized aluminum pipe, tubing and castings; plus stainless steel hardware and fastenings.
-
Weather resistant foam-filled feed assembly requires no pressurization. Easily replaced for frequency changes.
-
Compact packaging for standard U.S. express services.

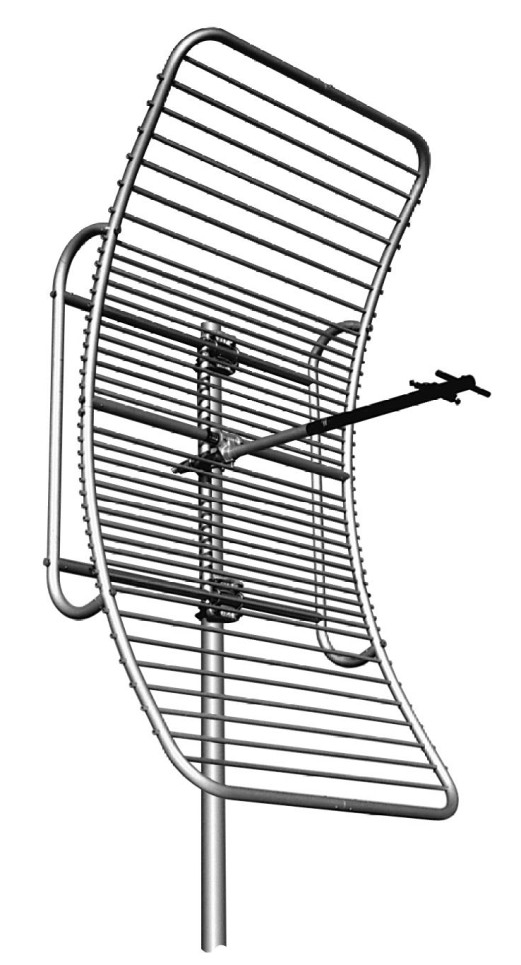

The Scala PR-TV series Paraflector antennas are designed 30063a subject to alteration PR-TV series, Page 1 of 2 for professional receive and low-power transmit applications in the 470-806 MHz spectrum. These antennas are available for any specified single 6 MHz UHF-TV channel.
|
Specifications |
|
| Frequency Range | 470-806 MHz |
| Gain | 15.5 - 17 dBd (depending on channel) |
| Bandwidth | 6 MHz |
| Impedance | 50 ohms |
| VSWR | <1.2:1 |
| Front-to-Back Ratio | 25 dB |
| Input Power Rating | 100 watts |
| H-Plane Beamwidth | 24 degrees (half-power) |
| E-Plane Beamwidth | 16 degrees (half-power) |
| Mounting Member | For masts of 2.375-4.5 inch OD |
| Dimensions | Height: 68 in x Width: 36 in x Length: 18 in |
| Net Weight | 38 lb |
| Wind Survival Rating | 100 mph |
Download Product PDF
Disclaimer: Specifications are subject to change without notice. Information may be changed or updated without notice. American Amplifier Technologies may also make improvements and/or changes to the products described at any time.
