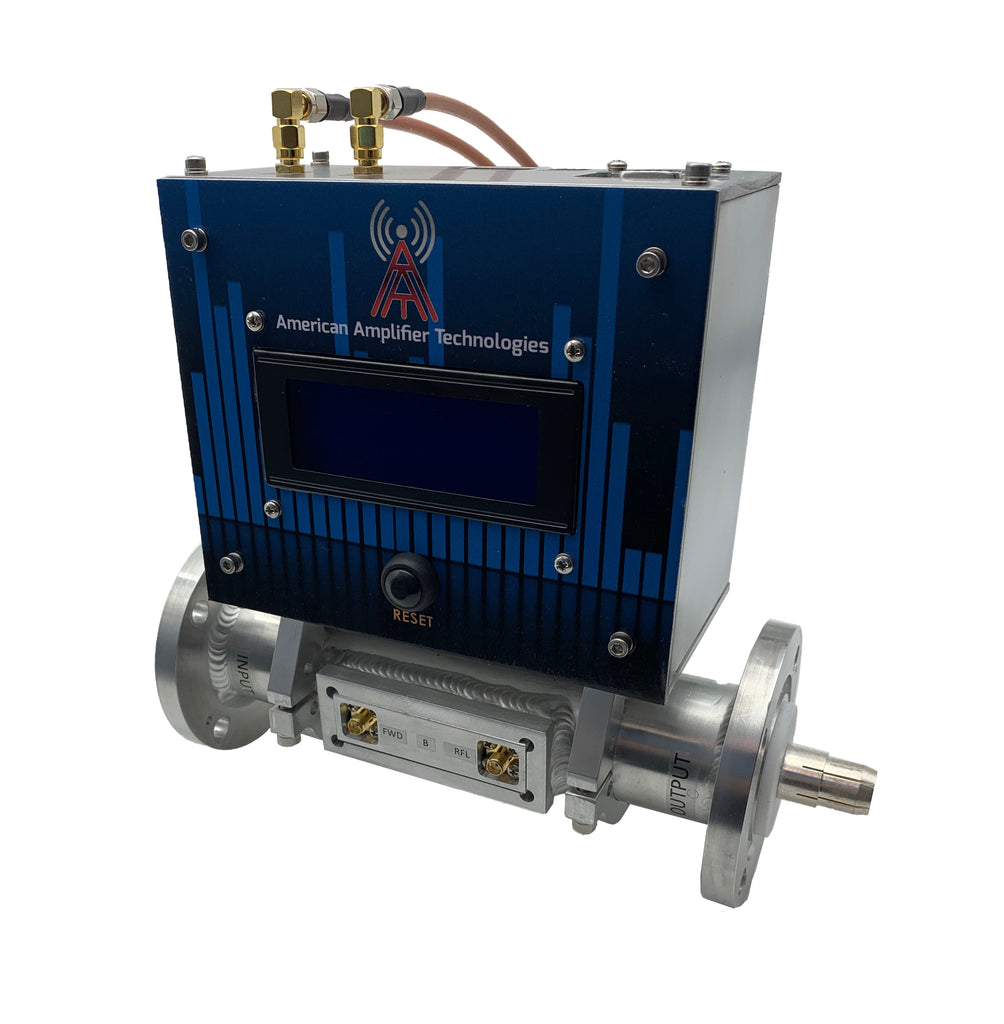

PM Series RF Power Meter, VHF Band I

  • Sale
  • Regular price $2,450.00


The AAT PM-VHFI series power meters provide accurate power measurements of analog and/or digital TV broadcast systems while allowing the user to define threshold parameters and monitor remotely.

RF Power Measuring Systems

  • TV Channels 2 -6 (5- 88 MHz), Digital and/or Analog
  • Monitoring via Ethernet, SNMP, Remote Samples.
  • HDMI port available for Remote Display. (Rack mountable display sold separately).
  • LCD Display
  • User Defined Power Range, Alarm Thresholds, Modulation Type, and Channel Selection

SPECIFICATIONS

Frequency

54-88 MHz

Monitoring

Forward Power, Reflective Power, VSWR, Temperature, Alarm Status and History.

Connection

Ethernet, DB9 Connector, & HDMI

Power Rating

40 kW

EIA Flange Type

3-1/8’’ EIA

Directivity

> 35 dB

Coupling

> 40 dB

Power

5 VDC, POE or power supply.
