The AAT PM-UHF series power meters provide accurate power measurements of analog and/or digital TV broadcast systems while allowing the user to define threshold parameters and monitor remotely.
RF Power Measuring Systems
- TV Channels 14-69 (470-806 MHz), Digital and/or Analog
- Monitoring via Ethernet, SNMP, Remote Samples
- LCD Display
- HDMI port available for Remote Display (Rack mountable display sold separately)
- User-defined Power Range, Alarm Thresholds, Modulation Type, and Channel Selection
|
SPECIFICATIONS |
|
|
Frequency |
470-806 MHz |
|
Monitoring |
Forward Power, Reflective Power, VSWR, Temperature, Alarm Status and History. |
|
Connection |
Ethernet, DB9 Connector, & HDMI |
|
Power Rating |
15 kW |
|
EIA Flange Type |
7/8'', 1-5/8'', 3-1/8’’, 4-1/16'', 6-1/8'' EIA |
|
Directivity |
> 35 dB |
|
Coupling |
> 40 dB |
|
Power |
5 VDC, POE or power supply. |
The EmPower App
Remote visibility and control in a secure, mobile-first platform. Monitor devices, manage fault conditions, and automate responses—on iOS, Android, or the web.

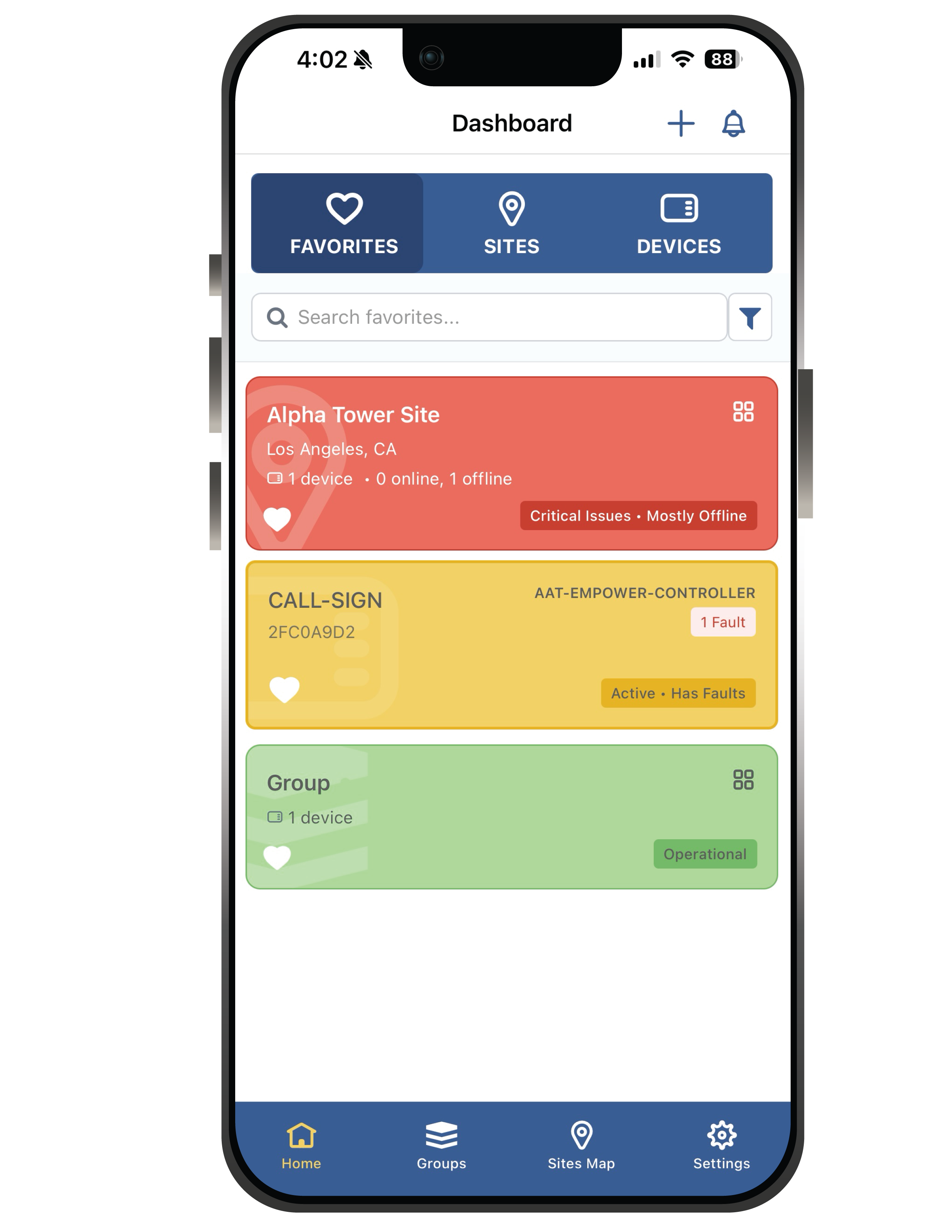

Remote Monitoring & Control
Real-time insight and control from anywhere—right from your phone or desktop.

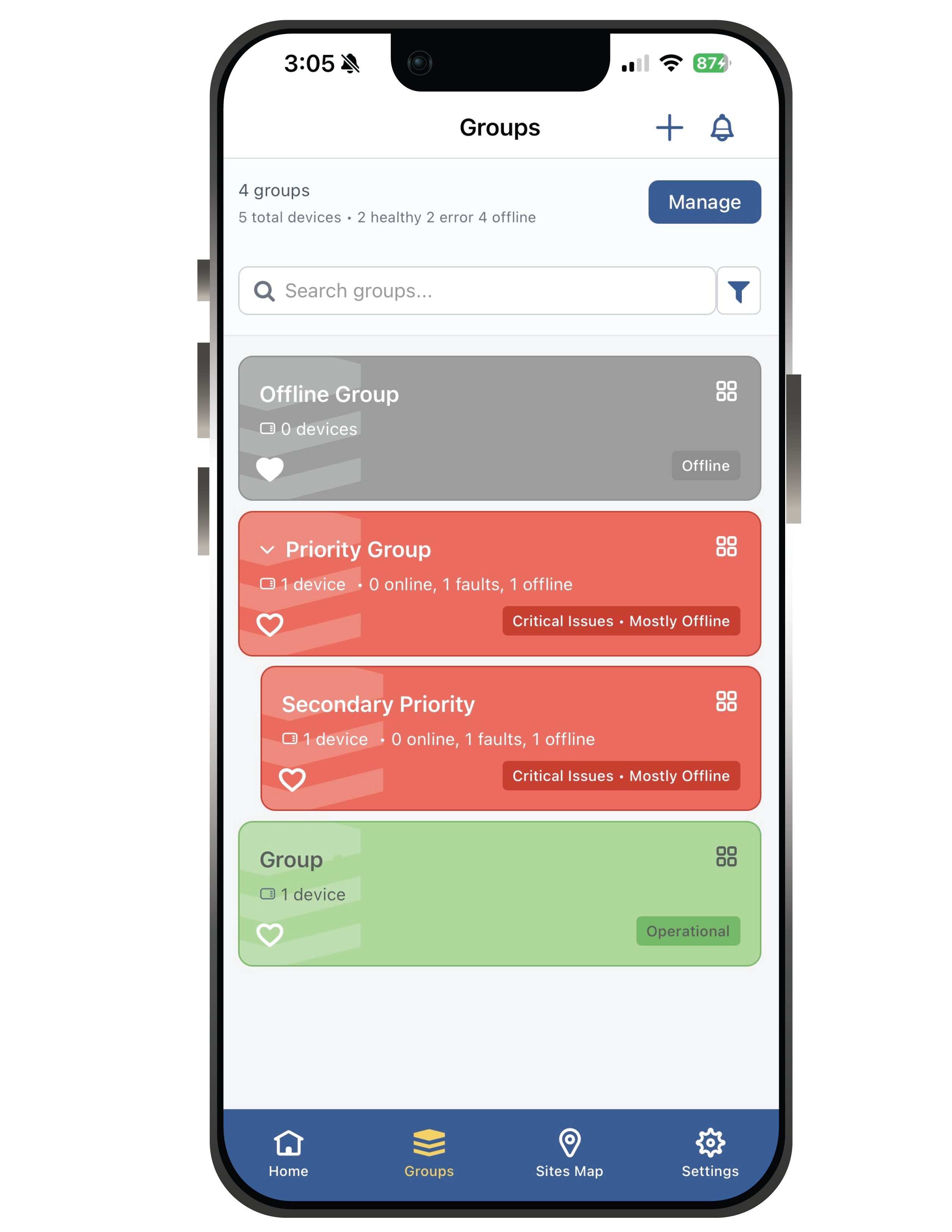

Site & Group Management
Organize devices into sites and nested groups for clear navigation and scale.
Map View
See every site on an interactive map to spot issues and prioritize response fast.

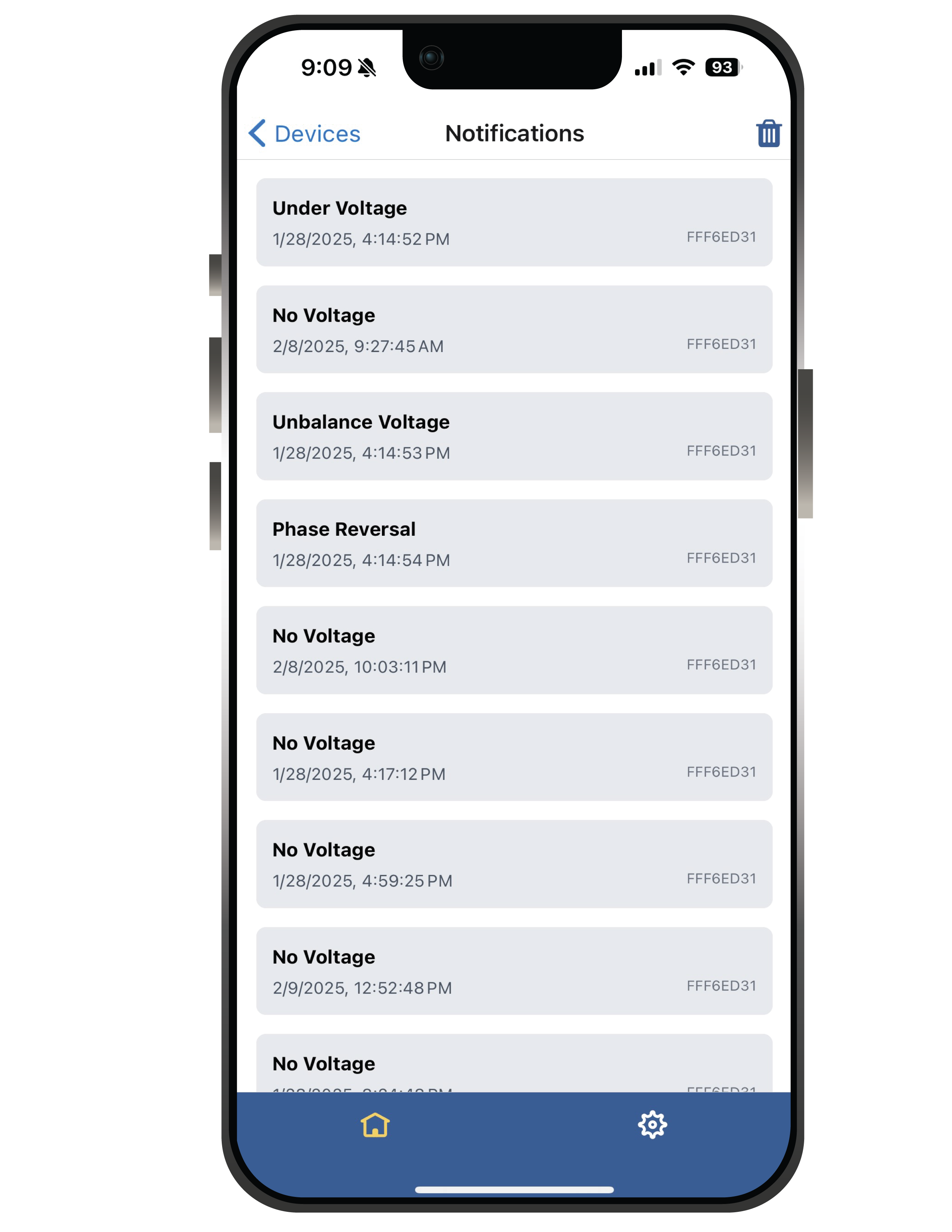

Proactive Alerts
Push notifications and fault history help you catch issues early and resolve faster.
