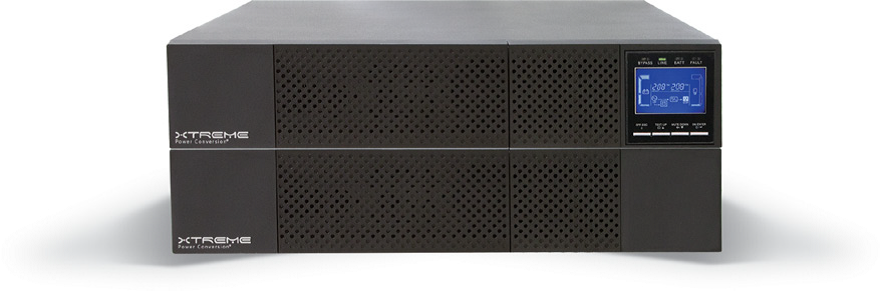

Designed for high density critical loads, the P91 delivers industry leading reliability, efficiency and flexibility.
P91 can be configured for online or ECO mode operation for efficiency of up to 99%. Output voltage and frequency are programmable to meet a wide range of USA and international requirements.
Product Snapshot
- Available models: 5000VA, 6000VA, 10000VA
- 99% efficiency in ECO mode
- Unity power factor
- Extended battery runtimes with optional matching battery modules
- UL, cUL, FCC, RoHS, CE (pending)
- 3 years electronics, 3 years battery warranty (USA and Canada)
FEATURES
Unity output power factor— P91 systems provide more real capacity for high density loads
Efficient operation—up to 94% online or 99% ECO mode efficiency lowers energy consumption
Hot swappable battery—P91 optional battery packs are easy to replace without inter- rupting the load
Isolation transformer— optional transformer provides 240/120 or 208/120V output
Multiple communications capability—RS-232, USB, and optional Web/SNMP, Modbus, Relay/dry contact cards
XBDM—optional input/out- put distribution, maintenance bypass switch, each output receptacle is protected by a breaker
$50,000 load protection policy—protection against damaged connected equipment
MODEL SELECTION GUIDE
|
MODEL NUMBER |
P91-5K |
P91-6K |
P91-10K |
||||
|
CAPACITY |
Power rating |
5kVA (5kW) |
6kVA (6kW) |
10kVA (10kW) |
|||
|
INPUT |
Voltage |
110–300VAC* |
|||||
|
Frequency |
50/60Hz |
||||||
|
OUTPUT |
Voltage |
208/220/230/240VAC (208/120V or 240/120V with optional transformer)*** |
|||||
|
Frequency |
50/60Hz ± 4Hz |
||||||
|
THD (full load) |
< 4% |
||||||
|
Overload capacity |
110% 10 min; 130% 1 min; > 130% 1 sec |
||||||
|
Efficiency |
Up to 94% online mode or 99% ECO mode |
||||||
|
BATTERY |
Charger amps |
1–4A |
|||||
|
Nominal/float voltage |
240/273VDC |
||||||
|
DIMENSIONS & |
Dimensions (W x D x H) |
17.2 x 23.6 x 3.5 in |
|||||
|
WEIGHT |
Weight |
33.1 lbs |
39.7 lbs |
||||
|
BYPASS |
Model |
XBDM-P91A (5 or 6kVA) |
XBDM-P91B |
XBDM-P91C |
XBDM-P91D |
||
|
DISTRIBUTION |
Input connection |
L6-30P with 6’ cord |
Terminal Blocks or optional line cord |
||||
|
MODULE |

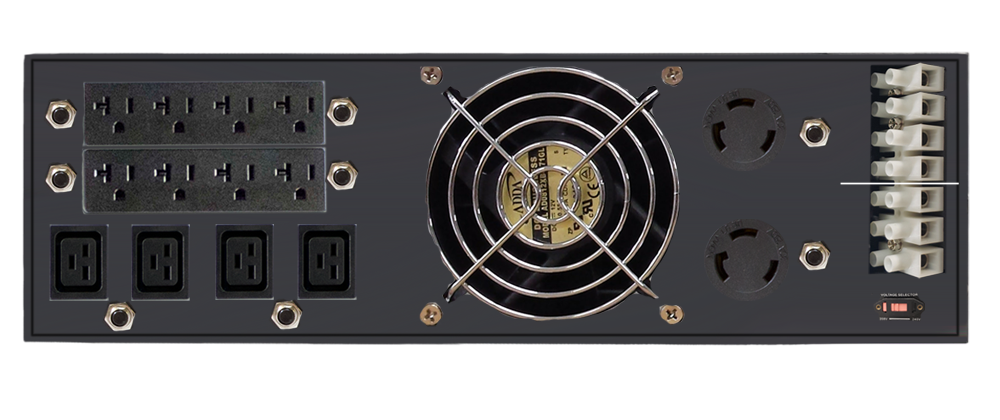

Output connection |
(2) L6-30R + (2) C19**each with breaker |
Terminal block + L6-30R + (2)C19** each with breaker |
Terminal block + L6-30Rwith breaker |
(2) L6-30R each withbreaker |
||
|
ENVIRONMENT |
Operating temperature |
32–104°F (0–40°C) |
|||||
|
Audible noise |
< 55dBA |
< 58dBA |
|||||
|
Altitude |
11,500 ft above sea level |
||||||
|
APPROVALS |
UL 1778, cUL, FCC, RoHS, CE, TAA complaint |
||||||
|
WARRANTY |
3 years electronics, 3 years battery warranty (USA and Canada) |
||||||
|
COMMUNICATIONS INTERFACE |
RS-232, USB, EPO, intelligent slot for optional cards (Web/SNMP, relay/dry contact, modbus) |
||||||
|
INCLUDED IN BOX |
Software CD, horizontal brackets, tower pedestals, USB cable |
||||||
|
AVAILABLE OPTIONS |
5 year extended warranty, 4-post rail kit, 2-post shelf kit, 2U/3U isolation transformer |
||||||
*Depending on load level. **Optional locking C20 dongles; L6-30R, L6-20R, 6-20R. *** P91 capacity derates to 90% at 208V output voltage.
