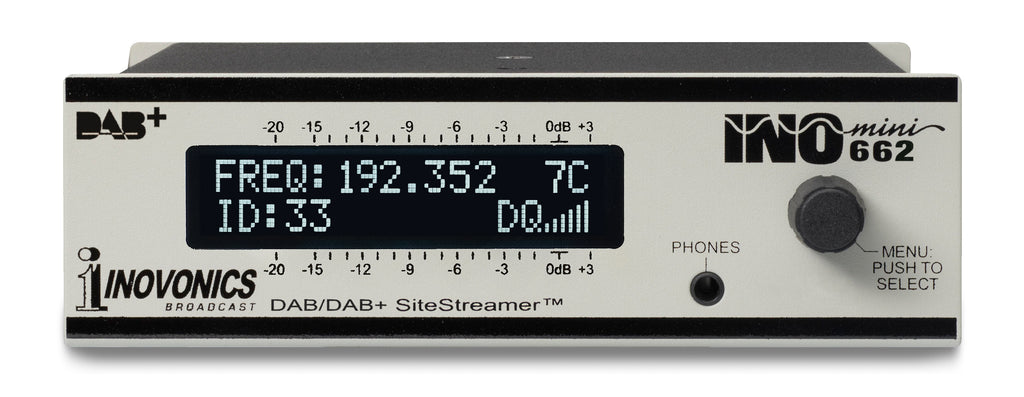

INOmini DAB/DAB+ SiteStreamer™ Model 662

  • Sale
  • Regular price $1,150.00


DAB/DAB+ SiteStreamer™

The Web-enabled 662 DAB+ SiteStreamer™ provides remote audio monitoring via the Internet. Monitor up to 30 preset sources of DAB+ programming from a remote site over the Internet. Tune-in, switch modes, listen remotely via streamed audio, and receive email or text alarms & notifications.

The Station Rotation™ feature permits monitoring of station presets by ‘round robin’ sequencing of up to 30 stations - each with its specific alarm parameters.

The compact 1/3-rack-size 662 integrates with other Inovonics INOmini products, including RDS encoders and decoders, AM/FM/HD-Radio confidence monitors with IP control and streaming audio, and other economic problem-solvers for broadcasters.

Special prices are available for INOmini RackPack™ combos that include three INOmini units preinstalled in the Rack Shelf.



Features

  • Monitor your DAB and DAB+ signal from any remote location via the Internet

  • Accurate front-panel and Web Interface program audio level display

  • BandScanner™ gives a spectrum plot of all or part of Band III

  • Station Rotation’ can monitor up to 30 stations sequentially

  • AES digital AUX input can monitor hardwired audio program feeds A/B between source and air

  • Full dynamic browser support of all operating features, including audio streaming through the dynamic Web Interface

  • Sends instant error messages via email or SMS text; logs signal loss, audio loss, DAB/DAB+ loss

  • Easy setup and operation; full SNMP support

  • Headphone jack


Specifications

Tuning Range

DAB Band III, Mode I (174.928MHz- 239.200MHz); all EBU-specified frequency allocations (Blocks 5-12, A-D) plus Block 13 A-F

Receiver Sensitivity

10μV for error-free reception

Antenna Input

75-ohm (BNC)

Audio Codecs

MPEG-1 Audio Layer 2 (MP2); HE-AAC (AAC+)

Audio Response

±0.25dB, 20Hz-20kHz

AUX Program Line Input

AES3 (XLR) digital AUX input accepts 32kHz, 44.1kHz, 48kHz sampling with programmable input sensitivity.

Network Connection

RJ45 jack accepts universal TCP/IP connector to LAN/router/Internet.

Headphone Jack

3.5mm TRS with menu-adjustable level

Signal Parameters & Metadata Displayed

Frequency, RSSI, SNR, FIC Quality (FQ), CNR, FFT Offset, CNR FIB Error, CU Level, Ensemble Label & ID, Total Services, Total Components, Total CU, Time, Dynamic Label Segment & Size, Sample & Bit Rates, Gain, Mode & ServiceMode, Protection Info, Current CU & Address, Frequency & Block, Service Label & ID, PTY, Component Label & ID, Global ID, Country, Language, Character Set ID, L/R Audio Levels

Alarms

Audio Loss, Low Signal, DAB Loss; adjustable thresholds and delays

Alarm Logs

Alarms are logged and may be downloaded as daily, weekly or monthly CSV files.

Power Requirement

+12VDC at 110mA (2.1mm x 5.5mm coaxial); a universal inline switchmode power supply is provided.

Mounting Options

An optional rack adapter accepts up to three INOmini modules in a 1U rack space.

Size and Weight

  • 1.6”H x 5.5”W x 5.5”D
  • 4 lbs shipping weight
