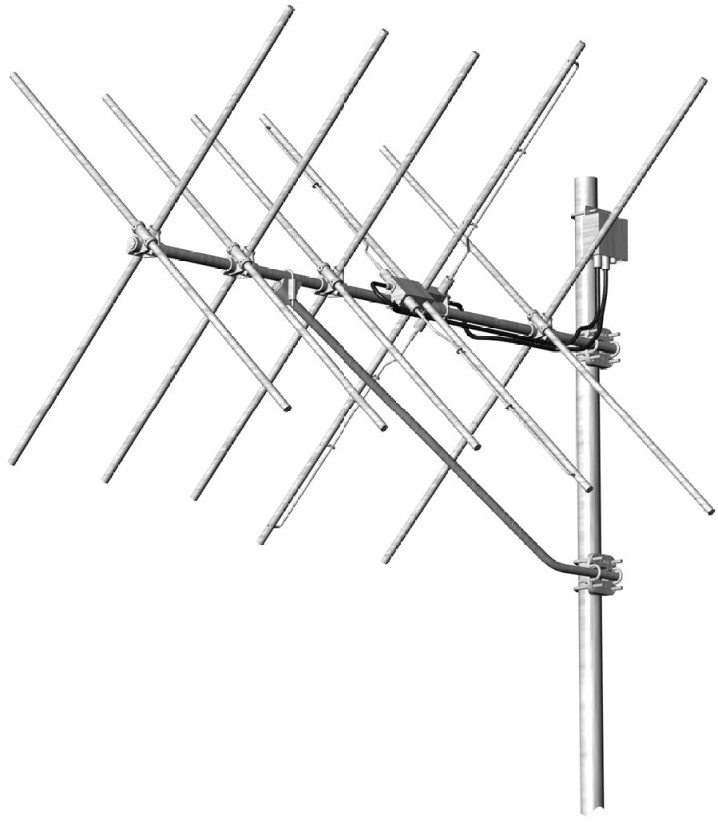

The Scala HDCA-5CP/RM is a ruggedly built yagi antenna, designed for professional FM transmit and receive applications.
Like all Scala antennas, the HDCA-5CP antennas are made of the finest materials using state of the art electrical and mechanical designs resulting in superior performance and long service life.
The HDCA-5CP antennas may be used stand alone or in stacked arrays for higher gain, increased side-lobe suppression, or custom azimuth patterns.
|
Specifications |
|
| Frequency Range | 88 - 108 MHz |
| Gain | 4.5 dBd |
| Power Gain | 2.82 |
| Impedance | 50 of 75 ohms |
| VSWR | <1.5:1 |
| Front-to-Back Ratio | >14 dB |
| Input Power Rating | 250 watts (50 ohms), 100 watts (75 ohms) |
| H-Plane Beamwidth | 62 degrees (half-power) |
| E-Plane Beamwidth | 62 degrees (half-power) |
| Mounting Member | For masts of 2.375 inch OD |
| Dimensions | Height: 84 in x Width: 13 in x Length: 8 in |
| Net Weight | 34.5 lb |
| Wind Load @ 100 MPH (Front) | 79 lbf |
| Wind Survival Rating | 120 mph |
