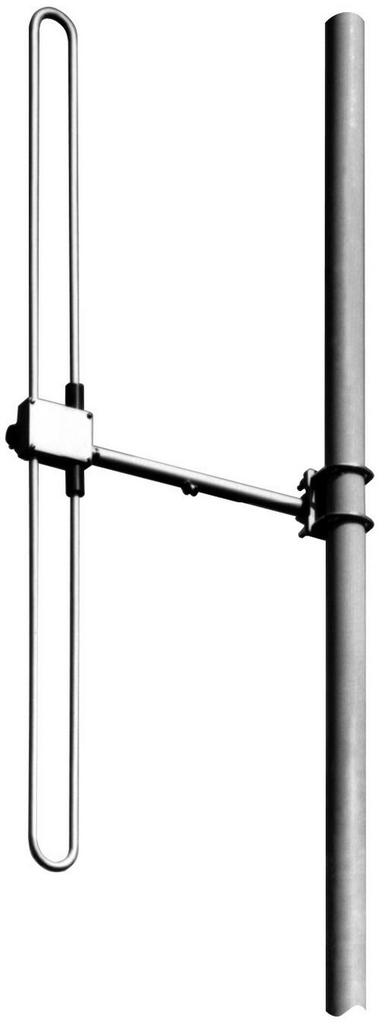

The Scala FMVMP dipole antenna for FM radio transmission offers high performance, easy installation, and application flexibility. Dipoles may be stacked for more gain and higher power handling capacity as required. Arrays include power dividers and coax feeders, plus installation hardware.
Like all Scala antennas, the FMVMP is made of the finest materials using state of the art electrical and mechanical designs, resulting in superior performance and long service life.
All FMVMP antennas feature:
- Triple laminated dipole for superior strength.
- Anodized aluminum and stainless steel construction designed to survive extreme weather.
- Internal balun is sealed in a cast aluminum housing to prevent moisture ingress and ice damage.
- Entire antenna is at DC ground potential for superior resistance to lightning.
|
Specifications |
|
| Frequency Range | 88 - 108 MHz |
| Gain | 1 dBd |
| Power Gain | 1.26 |
| Bandwidth | 88-98 MHz, 93-103 MHz, 98-108 MHz |
| Impedance | 50 ohms |
| VSWR | <1.5:1 |
| Input Power Rating | 500 watts |
| Mounting Member | For masts of 2.375 inch OD |
| Wind Load @ 100 MPH (Front) | 25 lbf |
| Wind Survival Rating | 120 mph |
Download Product PDF
Disclaimer: Specifications are subject to change without notice. Information may be changed or updated without notice. American Amplifier Technologies may also make improvements and/or changes to the products described at any time.
