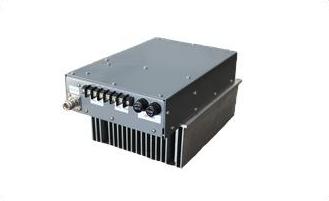

FM IPA Module 700 Watt

  • Sale
  • Regular price $2,295.00


AAT FM IPA modules are designed with the latest LDMOS FET technology.

700 W FM IPA Modules

  • Excellent for Tube and Solid State IPA stages
  • Frequency 88 - 108MHz
  • Direct replacement for popular Silicon Valley and MMD IPA modules used in Continental, Harris, and CCA transmitters
  • LDMOS XR series FET Technology

OVERVIEW



Frequency

88 – 108 MHz

Output Power Rating

700 W

Voltage

50 VDC

Input / Output

50 ohms

Efficiency

Up to 82%

Gain

28 - 35 dB

Connectors

BNC Input, Type N output

ELECTRICAL SPECIFICATIONS



700 W MODULE CHARACTERISTICS

MINIMUM

TYPICAL

MAXIMUM

UNIT OF MEASURE

Output Power

50

500

700

W

DC Voltage

45

50

52

V

Power Input

2

10

12

W

Power Gain

28

34

35

dB

Amplifier Efficiency

77

78

82

%

Maximum Current Rating

-

-

17.5

A
