5 kW FM Amplifier

  • Sale
  • Regular price $19,500.00


AAT solid state power LDMOS technology with extensive monitoring via Ethernet and Remote Samples.

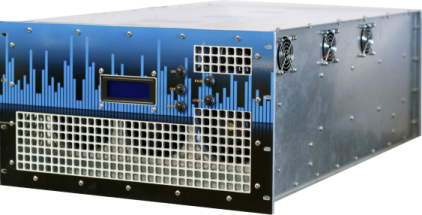

5 kW FM Amplifier

  • Solid state power LDMOS Technology
  • Reliable design and manufacturer
  • Frequency agile 87.5 - 108MHz
  • Efficient state-of-the-art transistors and power supplies
  • Extensive monitoring via Ethernet and Remote Samples
  • 2 Year Warranty

RF Characteristics

Output Impedance

50 Ω

Input Power

15 - 17 Watts Max

Frequency Range

87.5 – 108.0 MHz (± 1 kHz stability)

Nominal Output Power

5 kW

Power Level

Adjustable 1 – 105%

Output Connector

7/8 EIA

 Input Connector

 Type BNC

Spurious Emissions

Compliant to Industry Canada BETS-6 and FCC 73.317

Electrical

AC Input Voltage

208 - 250 Vac Single or Three Phase, and 110 - 120 Vac

Overall Power Consumption

5 kW = 7.352 kW

Overall Efficiency

> 69%

PA Power Consumption

5 kW = 6.410 kW

PA Efficiency

> 78%

Interface

Remote Port

Control:

RF carrier on/off, Reset



Monitor:

Forward & Reflected RF level, DC Voltage, DC Current,



Flags:

VSWR, Current, Voltage, Forward Power

Ethernet

Control:

RF carrier on/off, Reset



Monitor:

Forward/reflected RF level, DC current, DC voltage, RF input level, temperature, VSWR



Flags:

Carrier on/off, amplifier overdrive, DC pallet voltage, VSWR, RF input level, temperature, AGC/manual status

Physical Features

Minimal Rack Space

7U(PA), 2U( Power Supply)

12.25 (H) x 30’’ (D) x  19” (W)

Lightweight Enclosures

Aluminum

Operating Temperature

0 to +59° C

Humidity

90%, non-condensing






Download PDF - FM Amplifiers



Note: This product price does not include shipping expenses. This product ships via freight. The shipping cost will be calculated and invoiced separately after checkout. An AAT team member will contact you after checkout to determine the operating frequencies and shipping preference.
