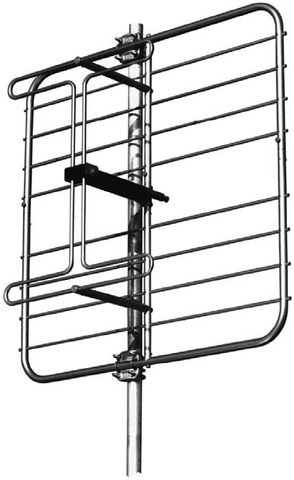

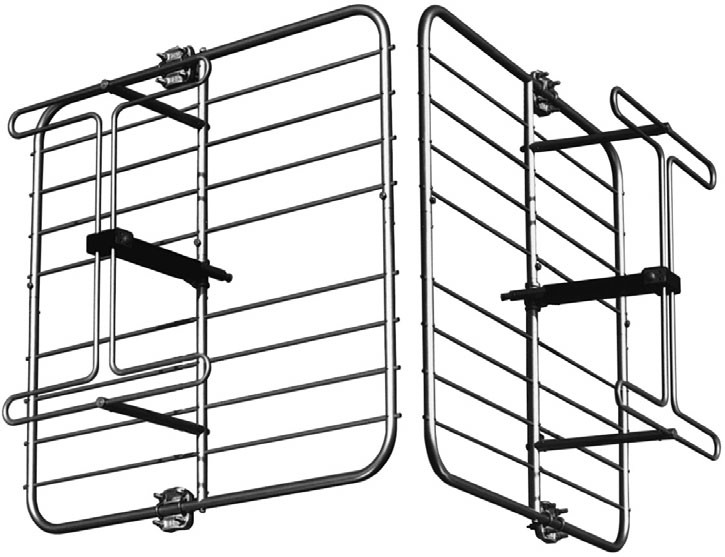

Scala DRV panel antennas for VHF television transmission offer high performance, low VSWR, and application flexibility. Multi-panel arrays can be utilized to provide the standard patterns shown below and custom patterns for specific coverage requirements. Arrays include power dividers and coax feeders, plus installation hardware.
Like all Scala antennas, the DRV is made of the finest materials using state of the art electrical and mechanical designs, resulting in superior performance and long service life.
|
Specifications |
|
| Frequency Range | 174-230 MHz |
| Gain | 7 dBd |
| Power Gain | 5.01 |
| Bandwidth | broadband |
| Impedance | 50 or 75 ohms |
| VSWR | <1.2:1 |
| Input Power Rating | 500 watts per panel |
| Mounting Member | For masts of 2.375 inch OD, additional options available |
| Wind Load @ 100 MPH (Front) | 93 lbf |
| Wind Survival Rating | 120 mph |
