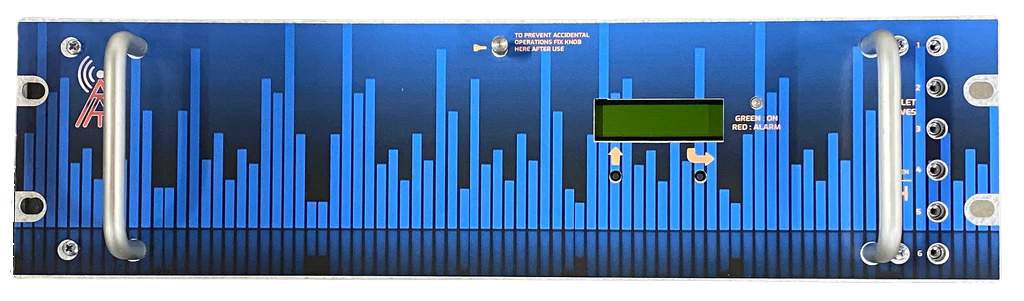

RM-DEH Rack Mountable Dehydrator
Features
- Designed for continuous operations
- Continuous monitoring of output pressure
- Remote Monitoring IO Connections
- Optional IP Interface | Web GUI | SNMP
- Programmable PSI Output Pressure
|
SPECIFICATIONS |
|
|
Output Pressure |
Programmable from 1.5-7 PSI |
|
Max Flow Rate |
254 SCFD (300 I/h) |
|
Output Dew Point |
Better than -40° F at 68° F (20° C) ambinet temperature and 80% Relative Humidity |
|
Safety Valve |
Factory set at 10 PSI ±15% |
|
Desiccant Regeneration |
Automatic by heating |
|
Regeneration Phase Interval |
Adaptive according to plant leakages |
|
Local & Remote Alarms |
Power & system failures; low/high pressure; high humidity |
|
Power Consumption |
≤ 3 W normal operation, < 55 W regeneration phase |
|
Power Supply |
100-240 VAC, 50/60 Hz |
|
Optional Remote Monitoring Interface |
10/100 ethernet with the following protocols: HTTP, TCP/IP, SNMP, TFTP, FTP, Telnet, DHCP |
|
Outlets |
6 outlets standard |
|
Acoustic Noise |
≤ 50 dBA at 3.2 ft (1 m) distance and 5 ft (1.5 m) height |
|
Enclosure Degree of Protection |
IP20 according to IEC529 |
|
Outlet Fittings |
3/8" (9.5mm) diameter (other fittings on request) |
|
Electrical Connector Type |
Dehydrator IEC320 Type C14, Controller Micro USB 5 VDC |
|
Physical Features |
|
|
Dimensions |
5.2" H x 19" W x 9.4" D |
|
Net Weight |
14.3 lbs (6.5 kg) |
|
Environmental Specifications |
|
|
Operating Temperature |
12° - 122° F (-10° C / +50° C) |
|
Storage Temperature |
-22° - 140° F (-30° C / +60° C) |
|
High Humidity Alarm |
Set at 10% of relative humidity ±2% |
