AAT's De-icer Controller automatically controls supply voltages for antenna heating elements with remote monitoring capabilities.

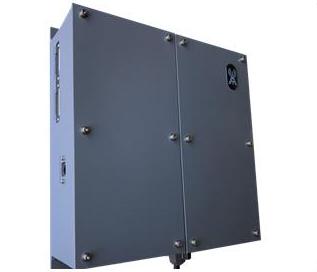

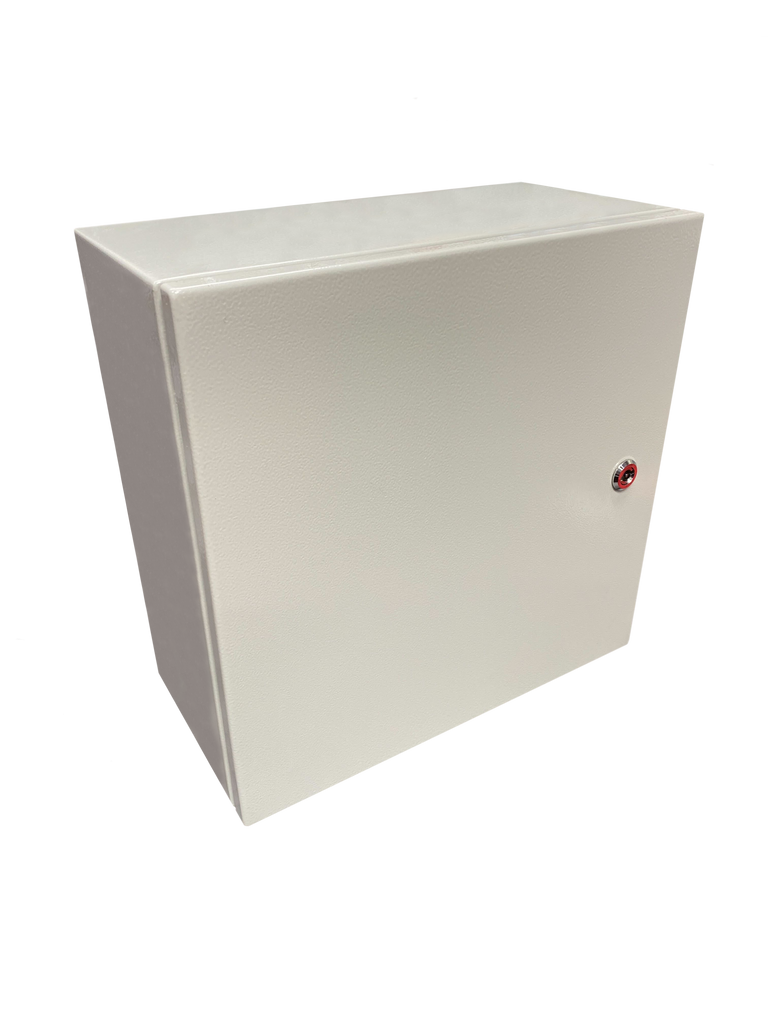

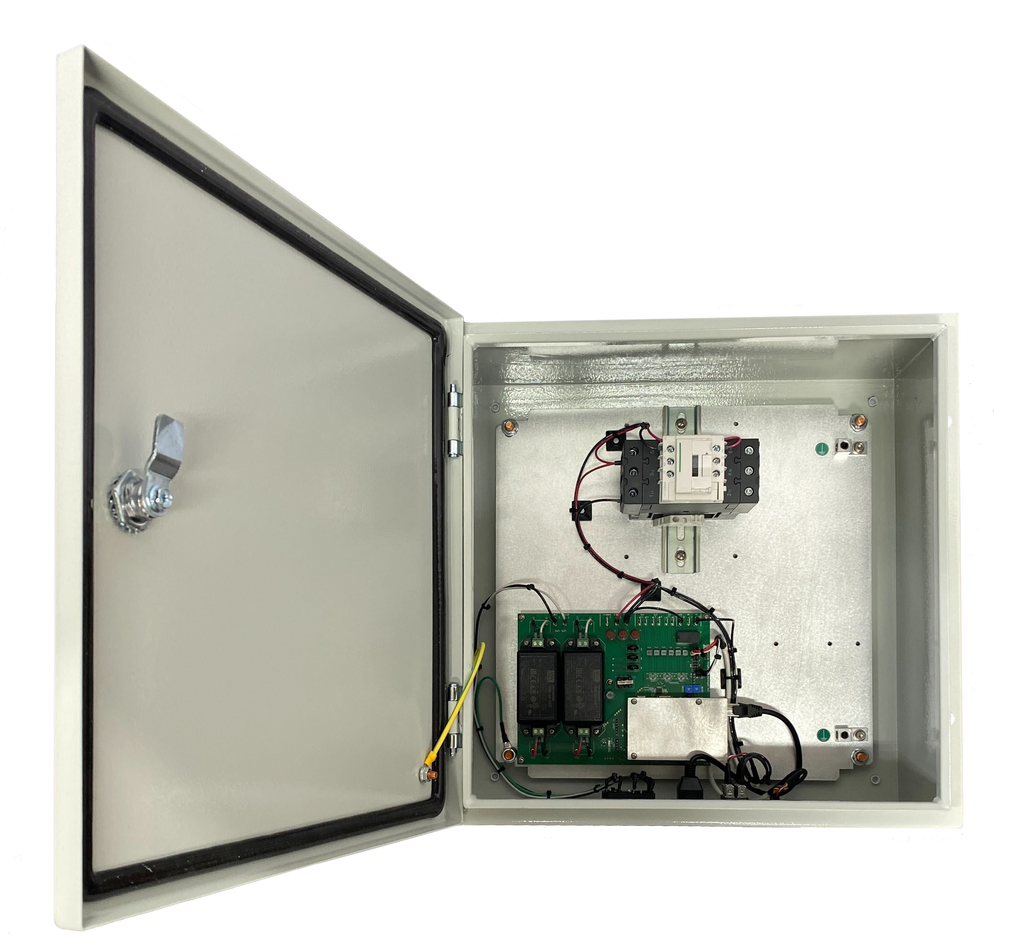

De-icer Controller Unit
- Controls and monitors supply voltages for antenna heating elements.
- Temperature, Humidity, and AC Current monitoring.
- Monitoring via Ethernet Web UI, SNMP, and Remote Samples
- Automatic or Manual control with configurable thresholds.
|
Specifications |
|
|
Web UI |
Dual Temperature, Dual Humidity, and Dual AC Current samples |
|
SNMP and Remote Samples |
Temp 1, Temp 2, Humidity 1, Humidity 2, AC Current 1, AC Current 2, Deicer Status |
|
Controller Power |
120VAC |
|
Controller Heater Source Voltage |
220 VAC, 120 VAC, or Other |
|
Power Consumption |
50 Watts |
|
Maximum Heater Source Current |
50 Amps |
|
Temperature Range |
-10° F to 120° F |
|
Humidity Range |
0 – 100 % Relative Humidity |
|
Models |
|
AAT-DE-ICER |
|
Physical Features |
|
|
Dimensions |
14”x 12” x 4.5” |
|
Weight |
20 lbs. |
