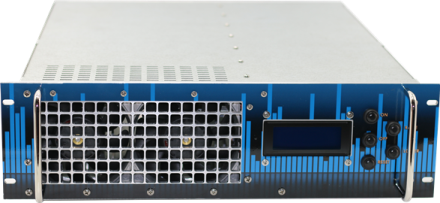

AAT state of the art Digital TV Transmitters combine proven reliability with modern features.
25 W – 5 KW TV Transmitters
- Full Color Touch Screen Display
- Internal RF Isolator (UHF, VHFIII)
- Two Stage Amplification
- Class A/AB Operation
- Efficient Transistors and Power Supplies
- Extensive Monitoring via Ethernet, SNMP, and Remote Samples
- Two Year Warranty
|
RF CHARACTERISTICS |
||||
|
Frequency Range |
VHF 50 – 230 MHz, UHF 470 - 860 MHz |
|||
|
Input Power |
0 dBm into power amplifier from modulator |
|||
|
Nominal Output Power (8VSB) |
VHF: 25W, 40W, 100W, 250W, 500W, 1kW, 2kW, 3KW, 4KW, 5KW |
UHF: 40W, 100W, 250W, 500W, 1kW, 2kW, 3KW, 4KW, 5KW |
||
|
Power Level |
Adjustable 10 – 100% |
|||
|
Input Impedance |
50 Ω into amplifier, BNC female |
|||
|
Output Impedance |
50 Ω, N or 7-16 DIN female (dependent on power level) |
|||
|
Modulation |
8VSB, QAM, DVBT/H, etc (output power will change between standards) |
|||
|
Signal and Noise |
MER >36 dB typical |
BER >38 dB typical |
SN >40 dB typical |
|
|
Phase Jitter |
>104 dB |
|||
|
Shoulders |
>-50 dB typical, ATSC mode compliant to ATSC A53/B |
|||
Typical Performance Specifications
|
ELECTRICAL |
|||
|
Flexible AC Input |
VHF PA: |
25W/100W/250W/500W - |
90-264Vac |
|
|
|
1kW/2kW/3kW/4kW/5kW - |
180-264Vac |
|
|
UHF PA: |
25W/100W/250W/500W - |
90-264Vac |
|
|
|
1kW/2kW/3kW/4kW/5kW - |
180-264Vac |
|
Other AC supply voltages and phases available upon request |
|||
|
INTERFACE |
||
|
DB25 Remote Port |
Control: |
RF carrier on/off, RF power up/down, reset |
|
|
Monitor: |
Forward/reflected RF level, control PCB Vcc |
|
|
Flags: |
Overdrive, VSWR (adjustable trip point), high temperature |
|
|
|
|
|
Ethernet |
Control: |
RF carrier on/off, RF power up/down, AGC/manual mode, change VSWR trip point, reset |
|
|
Monitor: |
Forward/reflected RF level, pallet voltage, RF input level, temperature, VSWR trip point, model/serial number |
|
|
Flags: |
Carrier on/off, overdrive, pallet voltage, VSWR, RF input, temperature, AGC / manual |
|
|
|
|
|
SNMP |
Control: |
RF carrier on/off, RF power up/down, AGC/manual mode, change VSWR trip point, reset |
|
|
Monitor: |
Forward/reflected RF level, DC pallet voltage, RF input level, temperature, pallet current, attenuation, run time, RF fault, model/serial number |
|
|
Flags: |
Overdrive, VSWR, temperature, SNMP error |
Touch Screen Interface
Modulator Interface
