FEATURES
-
Heavy duty construction.
-
Brass antenna assembly protected by cast aluminum backplate and rugged fiberglass radome.
-
Stable operation in severe icing conditions.
-
High front-to-back and front-to-side ratios without minor lobes.

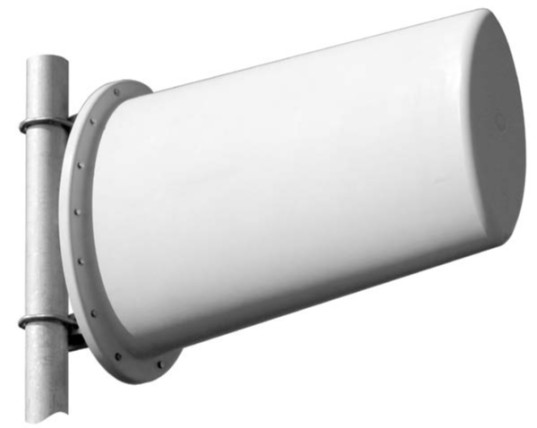

The Scala CL6-450B broadband log-periodic antenna is intended for use in professional fixed-station applications in the 400—512 MHz band.
|
Specifications |
|
| Frequency Range | 400-512 MHz |
| Gain | 6.5 dBd (8.65 dBi) |
| Impedance | 50 ohms |
| VSWR | <1.5:1 |
| Input Power Rating | 500 watts |
| H-Plane Beamwidth | 86 degrees (half-power) |
| E-Plane Beamwidth | 60 degrees (half-power) |
| Mounting Member | Kits Available for masts of 2.375 - 4.5 inch OD |
| Dimensions | Height: 26 in x Width: 17 in x Length: 12 in |
| Net Weight | 22 lb |
| Wind Survival Rating | 120 mph |
