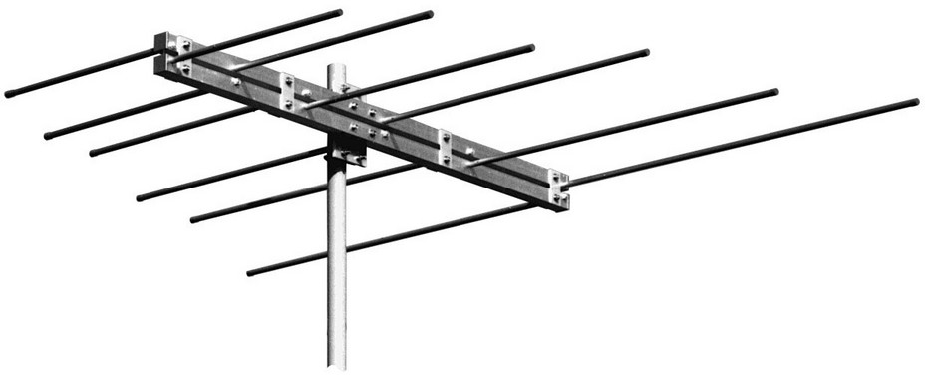

The Scala CL-24 is a ruggedly built, horizontally polarized log-periodic antenna, designed for professional VHF-TV transmit and receive applications.
Like all Scala antennas, the CL-24 is made of the finest materials using state of the art electrical and mechanical designs resulting in superior performance and long service life.
The CL-24 may be used stand alone or in stacked arrays for higher gain, increased side-lobe suppression, or custom azimuth patterns.
|
Specifications |
|
| Frequency Range | 54-72 MHz |
| Gain | 8.2 dBd |
| Power Gain | 6.61 |
| Bandwidth | broadband |
| Impedance | 50 or 75 ohms |
| VSWR | <1.5:1 |
| Front-to-Back Ratio | >25 dB |
| Input Power Rating | 250 watts (Type N, 75 ohms), 500 watts (Type N, 50 ohms), 1000 watts (7/16 DIN) |
| H-Plane Beamwidth | 76 degrees (half-power) |
| E-Plane Beamwidth | 54 degrees (half-power) |
| Mounting Member | For masts of 2.375 inch OD |
| Wind Load @ 100 MPH (Front) | 144 lbf |
| Wind Survival Rating | 120 mph |
