FEATURES
-
Internal balun and dipole feedpoint sealed within the boom assembly.
-
Balanced feed system with no capacitors for superior performance in icing conditions.
-
All aluminum components anodized for corrosion resistance.
-
Heavy wall anodized aluminum pipe and tubing.
-
Heavy duty aluminum castings and stainless steel hardware.
-
Entire antenna at DC ground potential.
-
Dual and quad arrays available.

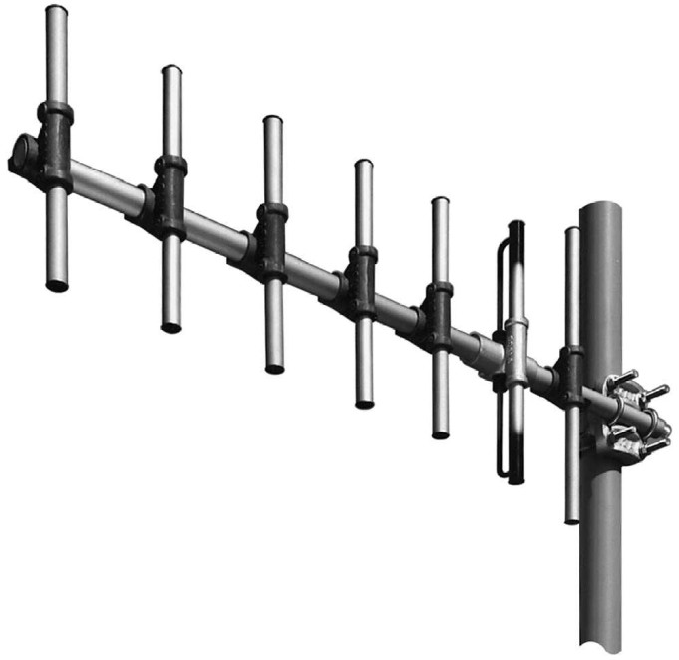

The Scala CA7-460 yagi antenna is intended for use in professional fixed-station applications in the 450-470 MHz band.
|
Specifications |
|
| Frequency Range | 450-470 MHz |
| Gain | 10 dBd (12.15 dBi) |
| Impedance | 50 ohms |
| VSWR | <1.35:1 |
| Front-to-Back Ratio | >18 dB |
| Input Power Rating | 250 watts |
| H-Plane Beamwidth | 53 degrees (half-power) |
| E-Plane Beamwidth | 41 degrees (half-power) |
| Mounting Member | For masts of 2.375 inch OD |
| Dimensions | Height: 39.9 in x Width: 14.9 in |
| Net Weight | 6.5 lb |
| Wind Load @ 100 MPH (Front) | 21 lbf |
| Wind Survival Rating | 120 mph |
