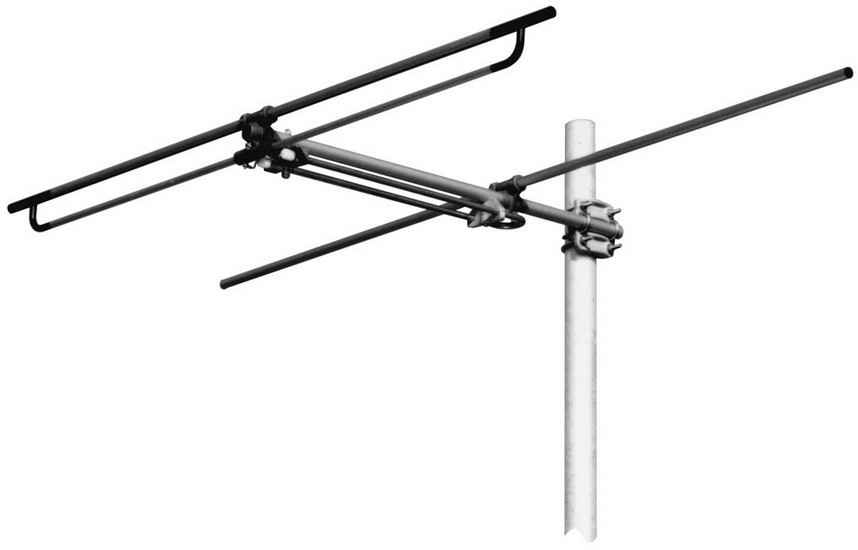

The Scala CA2 is a ruggedly built, dipole reflector antenna, designed for professional VHF-TV transmit and receive applications.
Like all Scala antennas, the CA2 is made of the finest materials using state of the art electrical and mechanical designs resulting in superior performance and long service life.
The CA2 may be used stand alone or in stacked arrays for higher gain, increased side-lobe suppression, or custom azimuth patterns.
|
Specifications |
|
| Frequency Range | 54-216 MHz |
| Gain | 4 dBd |
| Power Gain | 2.51 |
| Bandwidth | Any Specified VHF-TV Channel 2-13 |
| Impedance | 50 ohms |
| VSWR | <1.5:1 |
| Front-to-Back Ratio | >11 dB |
| Input Power Rating | 500 watts (Ch 2-6), 250 watts (Ch 7-13) |
| H-Plane Beamwidth | 80 degrees (half-power) |
| E-Plane Beamwidth | 72 degrees (half-power) |
| Mounting Member | For masts of 2.375 inch OD |
| Dimensions | Height: 48.5 in x Width: 112.3 in |
| Net Weight | 14 lb |
| Wind Load @ 100 MPH (Front) | 65 lbf |
| Wind Survival Rating | 120 mph |
