FEATURES
-
Balanced feed system with no capacitors for superior performance in icing conditions.
-
Internal balun and dipole feedpoint sealed within the boom assembly
-
Anodized aluminum construction.
-
Heavy cast aluminum and stainless steel hardware.
-
Entire antenna at DC ground potential.
-
Dual and quad arrays available.

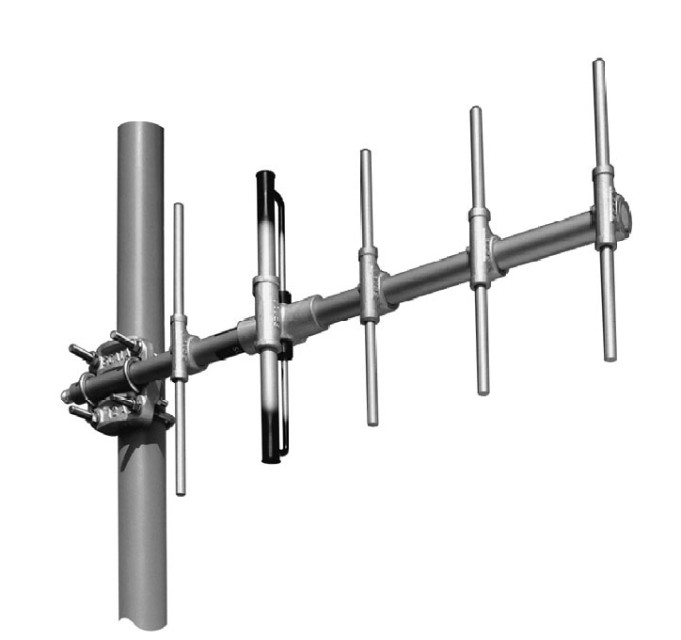

The Scala CA5-400 five-element yagi antenna is intended for use in professional fixed station applications in the 400 - 512 MHz band.
|
Specifications |
|
| Frequency Range | 400-512 MHz |
| Gain | 10 dBd (12.15 dBi) |
| Bandwidth | 6 MHz |
| Impedance | 50 ohms |
| VSWR | <1.3:1 ± 1 MHz, <1.5:1 ± 3 MHz |
| Front-to-Back Ratio | >20 dB |
| Input Power Rating | 250 watts |
| H-Plane Beamwidth | 64 degrees (half-power) |
| E-Plane Beamwidth | 48 degrees (half-power) |
| Mounting Member | For masts of 2.375 inch OD |
| Dimensions | Height: 31.5 in x Width: 14.3 in x Length: 4 in |
| Net Weight | 4 lb |
| Wind Load @ 100 MPH (Front) | 13 lbf |
| Wind Survival Rating | 200 mph |
