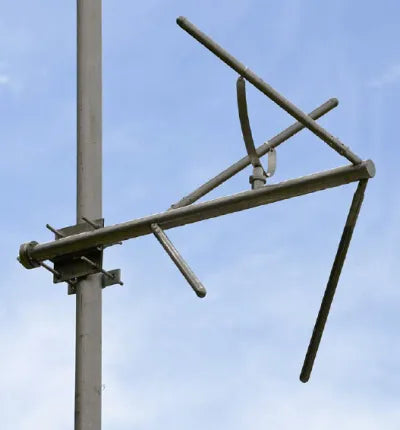

FEATURES
-
Rugged stainless steel construction
-
Power rating up to 7.5 kW per bay
-
87.5 -108 MHz under 1.3:1 VSWR
-
Pressurization recommended
-
Elliptically polarized
-
Optional: Feedpoint Radomes
-
Optional: Deicers
Specifications |
|
Model | 6842 |
Frequency Range | 88 – 108 MHz |
VSWR | >1.3:1 or better |
Polarization | "Elliptical" |
Input Power Rating | 7.5 kW per bay |
Azimuth | Horizonal Component ±1.5dB on Pole |
Connectors | "7/8” EIA for single bay, 1-5/8” EIA female for two bay, and 3-1/8” for 3-8 bay" |
Standard Models |
||||||
Model (Number of Bays) |
Full-wave Spaced |
Half-wave Spaced |
||||
Power Rating |
Power Gain |
Power Rating |
Power Gain |
|||
kW |
Power |
dB |
kW |
Power |
dB |
|
6842-1 |
7.5 |
0.450 |
-3.421 |
- |
- |
- |
6842-2 |
15 |
0.994 |
-0.027 |
15 |
0.858 |
-0.66 |
6842-3 |
22.5 |
1.510 |
1.797 |
22.5 |
1.243 |
0.94 |
6842-4 |
30 |
2.020 |
3.044 |
30 |
1.644 |
2.16 |
6842-5 |
37.5 |
2.520 |
4.010 |
37.5 |
2.037 |
3.09 |
6842-6 |
45 |
3.020 |
4.806 |
45 |
2.432 |
3.86 |
6842-8 |
60 |
4.040 |
6.068 |
60 |
3.223 |
5.08 |
Download Product PDF
Disclaimer: Specifications are subject to change without notice. Information may be changed or updated without notice. American Amplifier Technologies may also make improvements and/or changes to the products described at any time.
