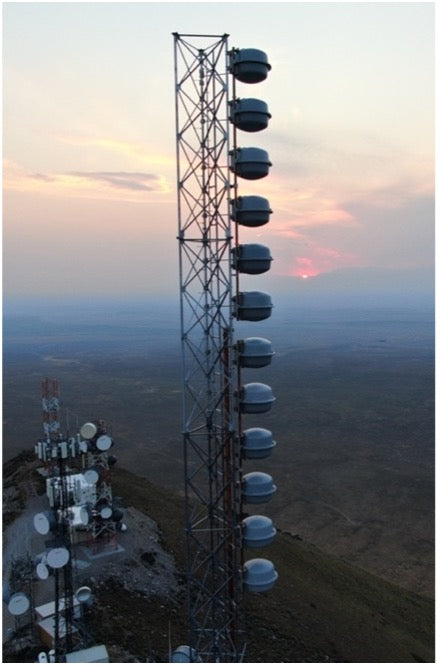

6828 High Power Antenna Systems

  • Sale
  • Regular price

REQUEST A QUOTE if you are interested in this product.



FEATURES

  • Circular or Elliptical Polarization

  • Broadband Multi-Channel Systems

  • High Power Ratings

  • Optional: Radomes

  • Optional: Deicers



Specifications

Model 6828
Frequency Range 87 – 108 MHz
VSWR 1.38:1 or better | 1.07:1 or better with field tuning
Polarization "Circular", "Elliptical"
Input Power Rating 32 kW – 210 kW
Azimuth ± 2dB free space
Connectors "3-1/8’’ EIA, 4-1/16” or 6-1/8’’"



Standard Models

Model

Power Rating kW

Power Gain

dB Gain

Full Wave

Half Wave

Full Wave

Half Wave

6828-1

32

0.46

NA

-3.37

NA

6828-2

40

0.95

0.73

-0.22

-1.36

6828-3

40

1.55

1.02

1.90

0.08

6828-4

40

2.13

1.35

3.28

1.30

6828-5

40

2.72

1.63

4.35

2.12

6828-6

40

3.25

1.89

5.12

2.76

6828-7

40

3.90

2.19

5.91

3.40

6828-8

40

4.28

2.61

6.31

4.17

6828-9

40

5.05

2.79

7.03

4.46

6828-10

40

5.54

3.14

7.44

4.97

6828-11

40

6.25

3.39

7.96

5.30

6828-12

40

6.57

3.70

8.18

5.68

6828-14

40

8.18

4.37

9.13

6.41

6828-16

40

9.41

4.98

9.73

6.97





Download Product PDF



Disclaimer: Specifications are subject to change without notice. Information may be changed or updated without notice. American Amplifier Technologies may also make improvements and/or changes to the products described at any time.
