The P90L is a true online UPS with an internal high capacity charger for connection to matching extended battery packs or large external systems.

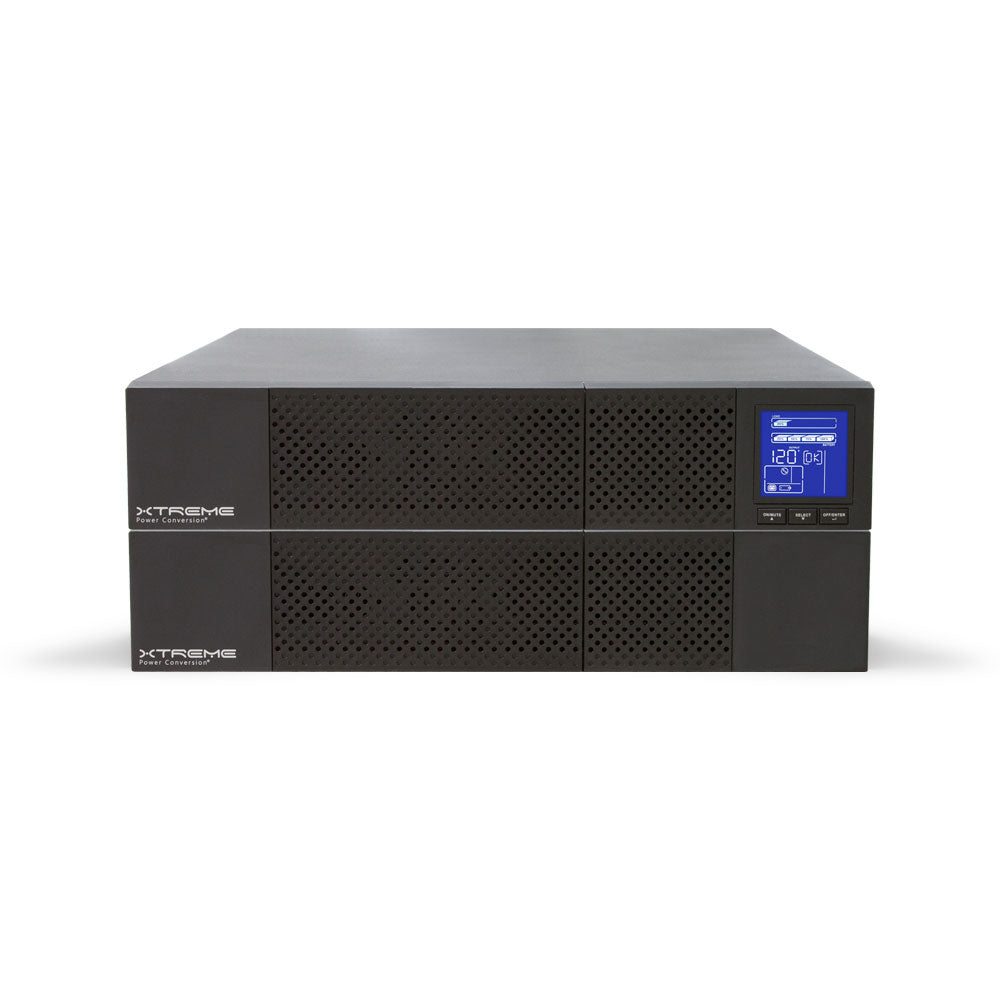

The P90L provides tower, rack, and wall mount options. It protects your equipment from blackouts, brownouts, sags, and surges. The P90L offers the lowest total cost of ownership by cutting energy costs and lowering heat output.
Product Snapshot
- Available models: P90L-1500, 2000, 3000
- 98% efficiency in ECO mode
- Extended battery runtimes with optional matching battery modules
- UL, cUL, CE, RoHS
- 3 years electronics, 3 years battery warranty (USA and Canada)
FEATURES
0.9 output power factor—P90L 120V systems provide more real capacity for high density loads
98% efficient operation—high efficiency ECO mode lowers energy consumption
Smart LCD display—vital moni- toring and precise information from the front panel
Frequency converter—P90L can be programmed to convert from 50Hz to 60Hz or 60Hz to 50Hz
Hot swappable battery—
P90L optional battery packs are easy to replace without inter- rupting the load
Multiple communications capability—RS-232, USB, and optional Web/SNMP, Modbus, Relay/dry contact cards
Load shedding capabilities— maximize uptime for critical loads and equipment by shedding less critical loads
Extended runtimes—P90L can be connected with optional matching battery packs or large external battery systems with included battery cable kit
$50,000 load protection policy—protection against damaged connected equipment
| MODEL NUMBER | P90L-1500 | P90L-2000 | P90L-3000 | P90Lg-3000 | |
|---|---|---|---|---|---|
| CAPACITY | AC output | 1250VA (1125W) | 1700VA (1530W) | 2500VA (2250W) | 3000VA (2400W) |
| DC charging | 246W | 328W | 493W | 656W | |
| INPUT | Voltage range | 50–150VAC* | 110–300VAC* | ||
| Frequency | 50/60Hz auto-sensing | ||||
| OUTPUT | Voltage | 120VAC nominal (100/110/115VAC selectable)** | 208/220/230/240VAC*** | ||
| Frequency | 50/60Hz ± 0.5Hz | ||||
| Overload capacity | 125% 2 min; 150% 10 sec; > 150% 1 sec | ||||
| THD (full load) | < 2% | ||||
| Crest factor | 5:1 | ||||
| BATTERY CHARGER | Charger amps | 6A | |||
| Nominal/float voltage | 36/41VDC | 48/55VDC | 72/82VDC | ||
| PHYSICAL | UPS dimensions (W x D x H) | 17.2 x 18.9 x 3.5 in | 17.2 x 18.9 x 3.5 in | 17.2 x 25.8 x 3.5 in | |
| UPS weight | 33 lbs | 35 lbs | 47 lbs | ||
| Input connection | 6 ft, 5–15P | 6 ft, 5–20P | 6 ft, L5–30P | 8 ft, C19 to L6-20P | |

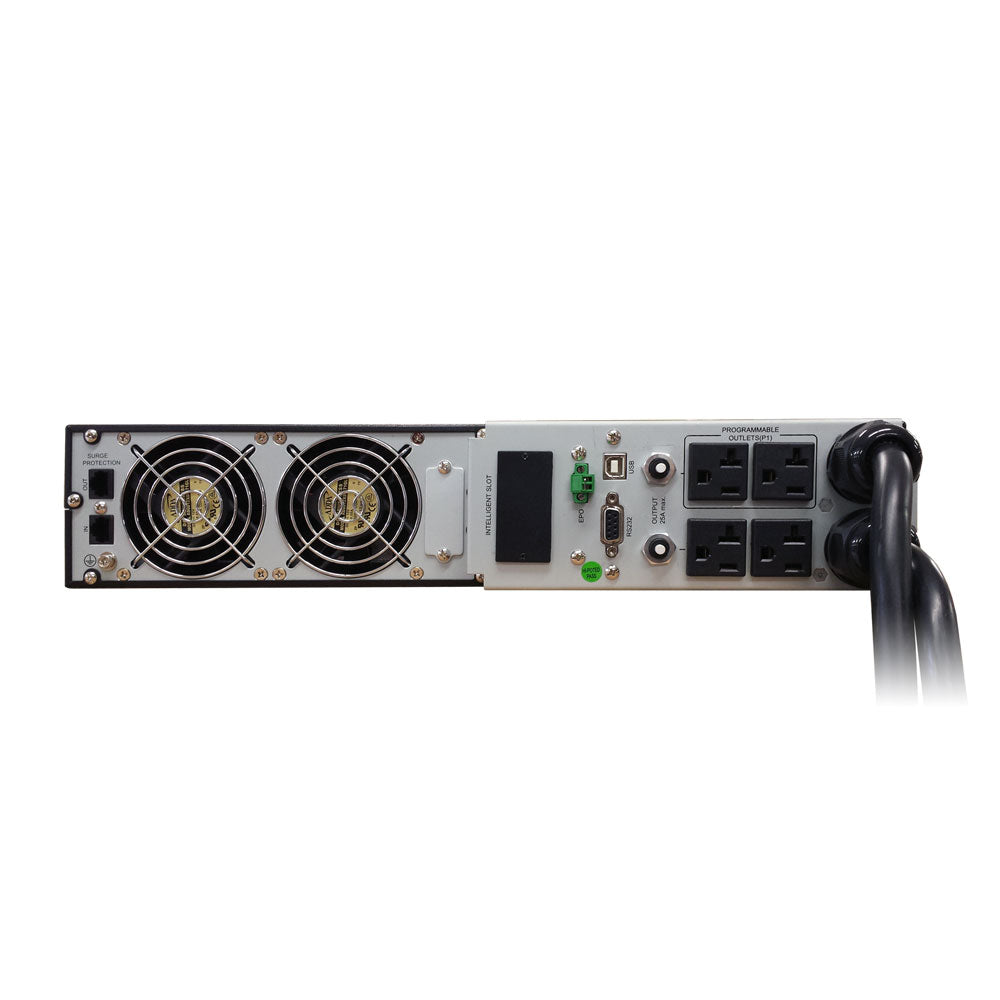

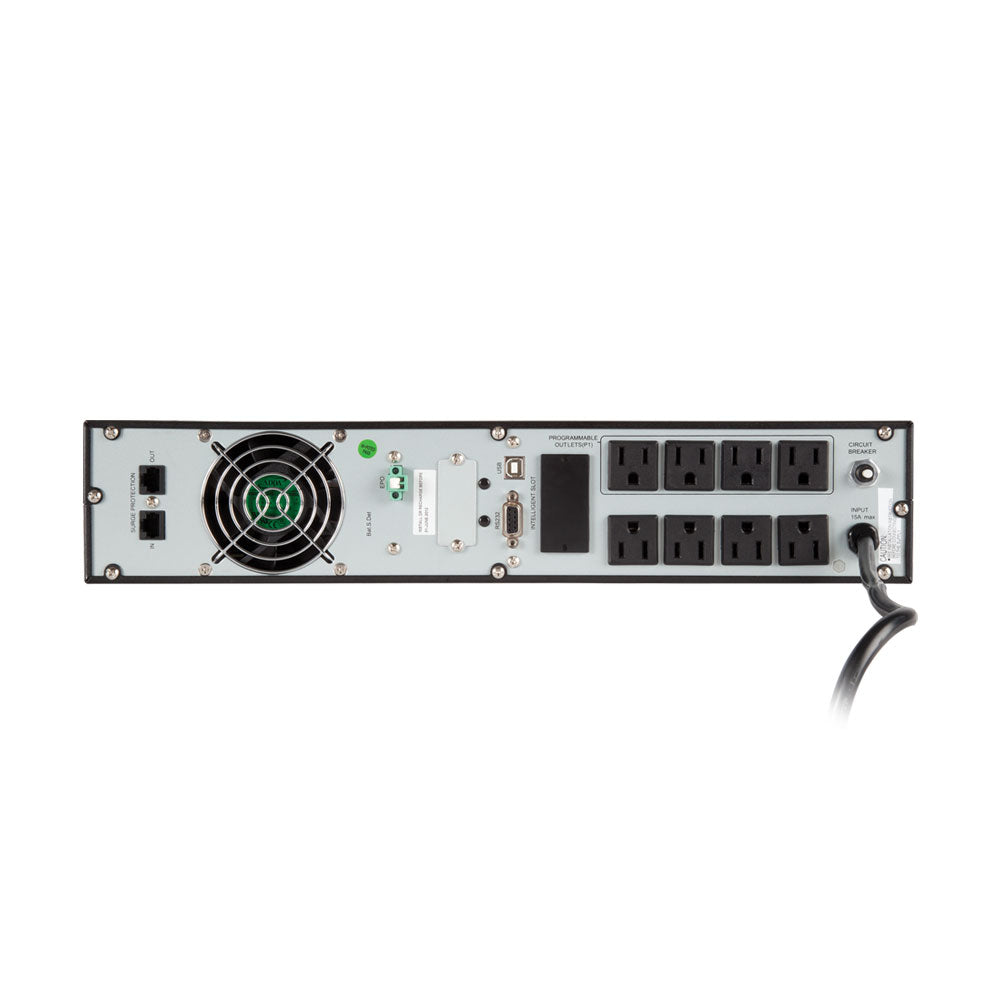

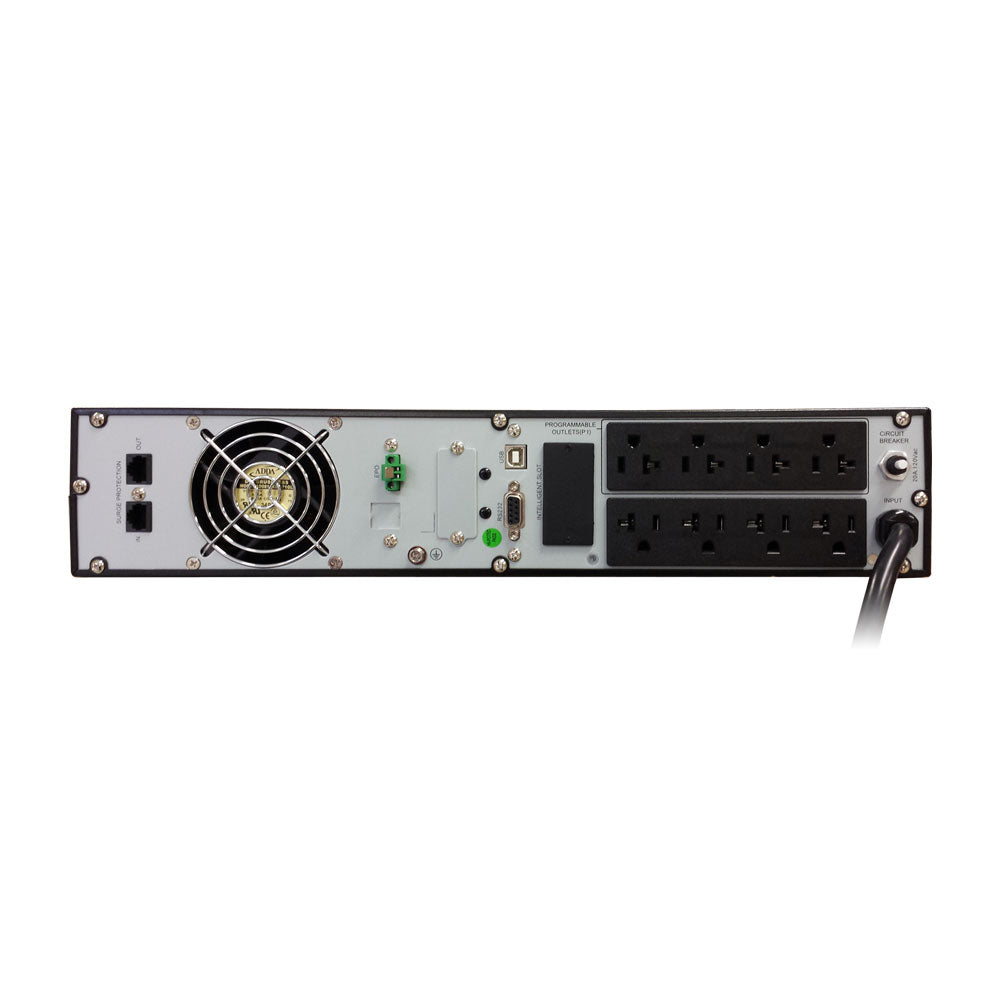

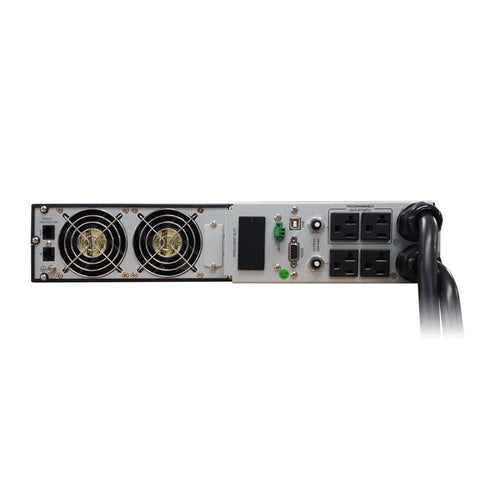

| Output connection | (8) NEMA 5–15R | (8) NEMA 5–15/20R | (1) NEMA L5–30R + (4) NEMA 5–15/20R | (1) IEC C19 + (6) IEC C13 | |
| ENVIRONMENT | Efficiency | Up to 98% ECO mode and 92% online mode (90% online mode for P90Lg-3000) | |||
| Operating temperature | 32–104°F (0–40°C) | ||||
| Audible noise | < 50dBA | ||||
| Altitude | 11,500 ft above sea level | ||||
| OPTIONAL BATTERY PACKS | Model number | P90-BP36 / 36E | P90-BP48 | P90-BP72 | |
| BP dimensions (W x D x H) | 17.2 x 18.9 x 3.5 in /17.2 x 23.6 x 3.5 in (E) | 17.2 x 18.9 x 3.5 in | 17.2 x 23.6 x 3.5 in | ||
| BP weight | 58.1 lbs / 104.4 lbs (E) | 74.6 lbs | 104.4 lbs | ||
| Battery quantity/type | (6) 12V9AH/36V / (12) 12V9AH / 36V (E) | (8) 12V9AH/48V | (12) 12V9AH/72V | ||
| APPROVALS | UL, cUL, RoHS | CE, RoHS | |||
| WARRANTY | 3 years electronics, 3 years battery warranty (USA and Canada) | ||||
| COMMUNICATIONS INTERFACE | RS-232, USB, EPO, intelligent slot for optional cards (Web/SNMP, Relay/dry contact, Modbus) | ||||
| INCLUDED IN BOX | Software CD, horizontal brackets, tower pedestals, 16 in battery cable kit | ||||
| AVAILABLE OPTIONS | 5 year extended warranty, bypass distribution (XBDM), power distribution (XPDU), 4-post rail kit, 2-post shelf kit | ||||
*Depending on load level; **P90L capacity derates 20% at 100V output voltage; ***P90Lg-3000 capacity derates 20% at 208VAC output voltage
