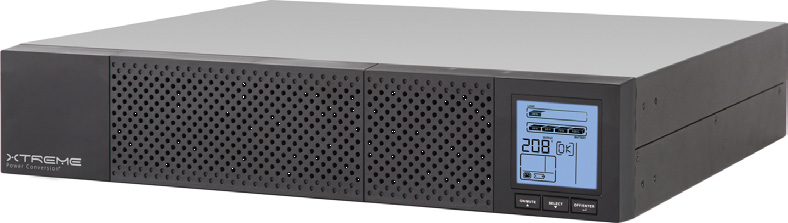

Advanced line interactive power protection for servers and network
equipment. Pure Sine Wave Line Interactive 800VA-3000VA
› 0.9 output power factor
› 99% efficient operation
› Extended battery packs available for 1500VA-3000VA models
› Auto restart
› Programmable receptacle group
› $50,000 load protection policy
› UL, cUL, RoHS, TAA compliant (UPS only)
› 3 years electronics, 3 years battery warranty (USA and Canada)
| MODEL NUMBER | P80-800 | P80-1100 | P80-1500 | P80-2000 | P80-2200 | P80-3000(V2) | |
|---|---|---|---|---|---|---|---|
| CAPACITY | Power rating | 800VA (720W) | 1100VA (990W) | 1500VA (1350W) | 2000VA (1800W) | 2200VA (2000W) | 3000VA (2700W) |
| INPUT | Voltage nominal | 120VAC | |||||
| Voltage range | -32% to +27% without use of battery | ||||||
| Frequency | 50/60Hz auto-sensing | ||||||
| OUTPUT | Voltage | 120VAC nominal (110/115/127 selectable) | |||||
| Waveform | Pure sine wave | ||||||
| Transfer time (typical) | 2–6ms | ||||||
| Efficiency | Up to 99% ECO mode, 95% buck and boost mode | ||||||
| Harmonic distortion | 2% @ 100% linear load; 5% @ 100% non-linear load | ||||||
| BATTERY | Battery type | Sealed, maintenance-free lead acid | |||||
| Battery quantity and size | (2) 12V 7AH | (2) 12V 9AH | (4) 12V 7AH | (4) 12V 9AH | (6) 12V 7AH | (6) 12V 9AH | |
| Charging current | 1.5A max | ||||||
| Typical recharge | 4 hours to 90% | ||||||
| PHYSICAL | Dimensions (W x D x H) | 17.2 x 15.1 x 3.5 in | 17.2 x 18.9 x 3.5 in | 17.2 x 23.6 x 3.5 in | |||
| Weight | 29.3 lbs | 30.5 lbs | 44.7 lbs | 47.4 lbs | 61.7 lbs | 67.1 lbs | |
| Line cord | 6 ft, 5–15P | 6 ft, 5–15P | 6 ft, 5–15P | 6 ft, 5–20P | 6 ft, 5–20P | 6 ft, L5–30P | |

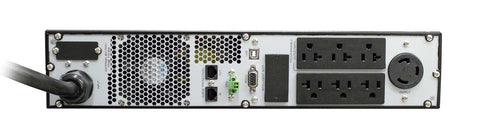

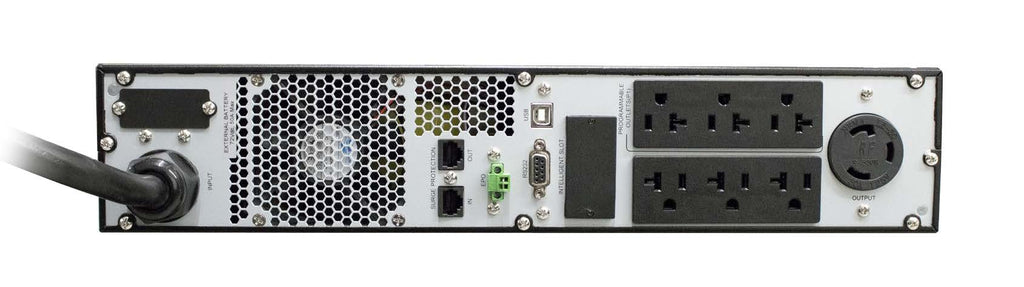

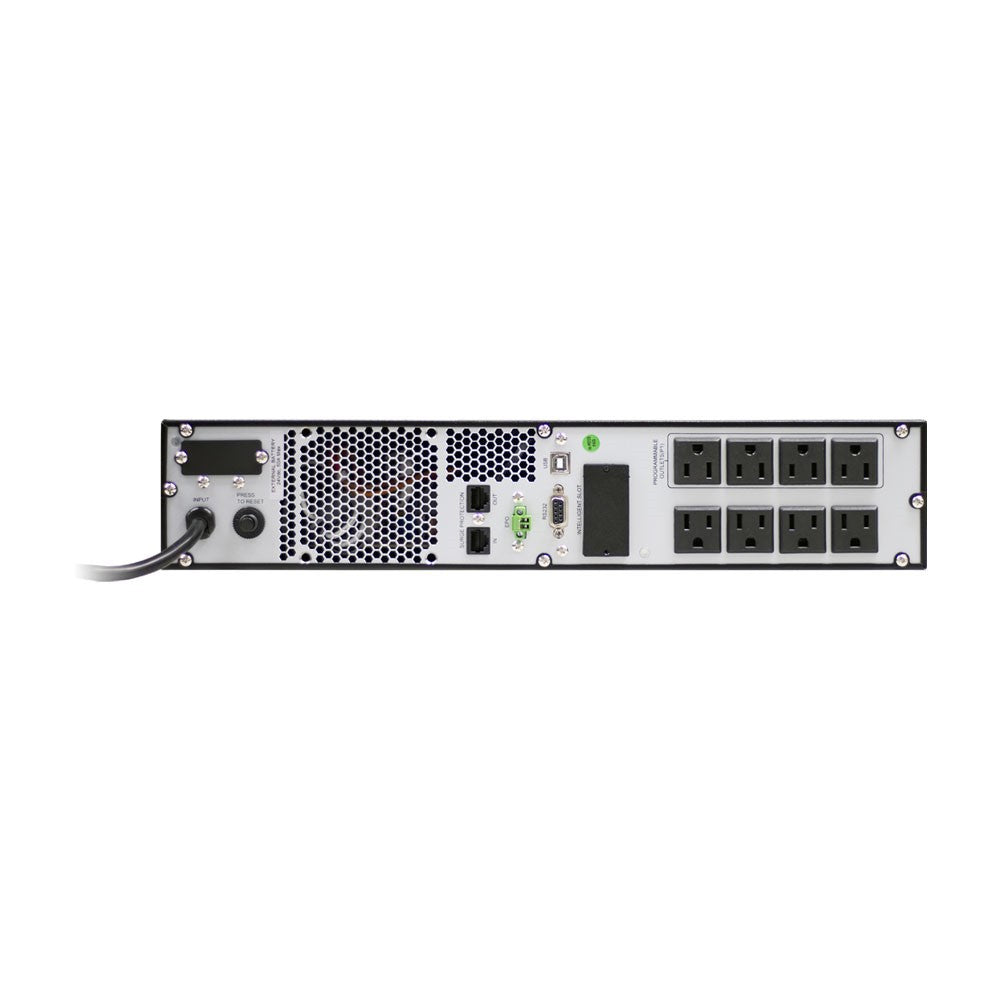

| Receptacles | (8) NEMA 5–15R | (8) NEMA 5–15/20R | (8) 5–15/20R or (6) 5-15/20R + (1) L5-30R(V2) | ||||
| OPTIONAL BATTERY PACKS | Model number | N/A | P90-BP48 | P90-BP72 | |||
| Dimensions (W x D x H) | N/A | 17.2 x 18.9 x 3.5 in | 17.2 x 23.6 x 3.5 in | ||||
| Weight | N/A | 74.6 lbs | 104.4 lbs | ||||
| Battery | N/A | (8) 12V 9AH / 48V | (12) 12V 9AH / 72V | ||||
| ENVIRONMENT | Operating temperature | 32–104°F (0–40°C) | |||||
| Audible noise | < 45dBA | ||||||
| Altitude | 11,500 ft above sea level | ||||||
| APPROVALS | UL, cUL, RoHS | ||||||
| WARRANTY | 3 years electronics, 3 years battery warranty (USA and Canada) | ||||||
| COMMUNICATIONS INTERFACE | RS-232, USB, EPO, intelligent slot for optional cards (Web/SNMP, Relay/dry contact, Modbus) | ||||||
| INCLUDED IN BOX | Software CD, horizontal brackets, tower pedestals, user manual | ||||||
| AVAILABLE OPTIONS | 5 year extended warranty, bypass distribution (XBDM), power distribution (XPDU), 4-post rail kit, 2-post shelf kit, wall mount bracket | ||||||
