Features
-
Frequency: 87 - 108MHz
-
Multiple Bay Systems Available
-
High quality stainless steel, brass, and copper materials.
- Multi-Channel Systems
- Pressurized

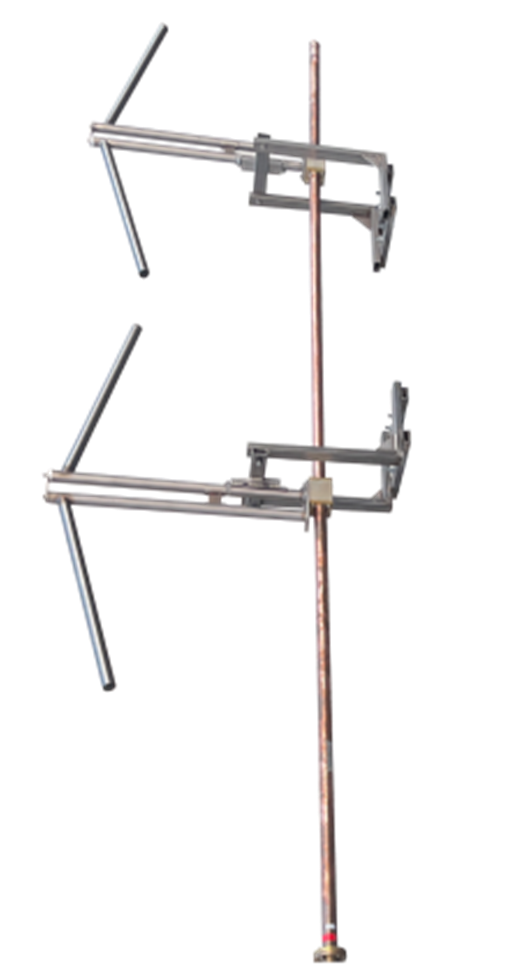

The V-DP-M series product is a high power FM side mount antenna system. The V-DP-M systems provide excellent solutions for vertical only polarized FM station applications. Systems are available in half wave and full wave configurations. Special spacing configurations are available upon request.
|
Specifications |
|
|
|
|
|
Input Power Rating |
10kW-60kW |
|
Polarization |
Vertical |
|
Azimuth |
± 2 dB free space |
|
Connections Available |
EIA: 1-5/8", 3-1/8",4-1/16", 6-1/8" |
|
|
|
Standard Models |
|||||||
|
Model |
Power Rating |
Power Gain |
dB gain |
Weight |
Wind load |
||
|
# of Bays |
|
Full Wave |
Half Wave |
Full Wave |
Half Wave |
lbs |
lbs
|
|
V-DP-M1 |
10 kW |
0.97 |
NA |
-0.132 |
NA |
22 |
52 |
|
V-DP-M2 |
10 kW |
1.99 |
1.00 |
2.99 |
0.00 |
52 |
119 |
|
V-DP-M3 |
10 kW |
3.20 |
1.60 |
5.05 |
2.04 |
76 |
178 |
|
V-DP-M4 |
10 kW |
4.40 |
2.20 |
6.43 |
3.42 |
111 |
251 |
|
V-DP-M5 |
10 kW |
5.45 |
2.73 |
7.36 |
4.36 |
154 |
353 |
|
V-DP-M6 |
10 kW |
6.55 |
3.28 |
8.16 |
5.16 |
174 |
368 |
| V-DP-M7 | 10 kW | 7.70 | 3.85 | 8.86 | 5.85 | 220 | 387 |
| V-DP-M8 | 10 kW | 8.75 | 4.38 | 9.42 | 6.41 | 251 | 575 |
| V-DP-M9 | 10 kW | 9.89 | 4.95 | 9.95 | 6.95 | 272 | 603 |
| V-DP-M10 | 10 kW | 10.89 | 5.45 | 10.40 | 7.36 | 311 | 712 |
| V-DP-M11 | 10 kW | 11.90 | 5.95 | 10.80 | 7.75 | 342 | 776 |
| V-DP-M12 | 10 kW | 13.35 | 6.68 | 11.30 | 8.25 | 370 | 841 |
| V-DP-M13 | 10 kW | 14.15 | 7.08 | 11.50 | 8.50 | 401 | 917 |
| V-DP-M14 | 10 kW | 15.60 | 7.80 | 11.90 | 8.92 | 432 | 984 |
-
> 10 kW ratings available upon engineering review.
-
Includes standard mounting brackets and attachment hardware
Disclaimer: Specifications are subject to change without notice. Information may be changed or updated without notice. American Amplifier TechnologiesTM may also make improvements and/or changes in the products described in this information at any time.
Note: This product price does not include shipping expenses. This product ships via freight. The shipping cost will be calculated and invoiced after checkout. An AAT team member will contact you after checkout to determine the operating frequencies and shipping preference.
