J60 UPS

  • Sale
  • Regular price $450.00

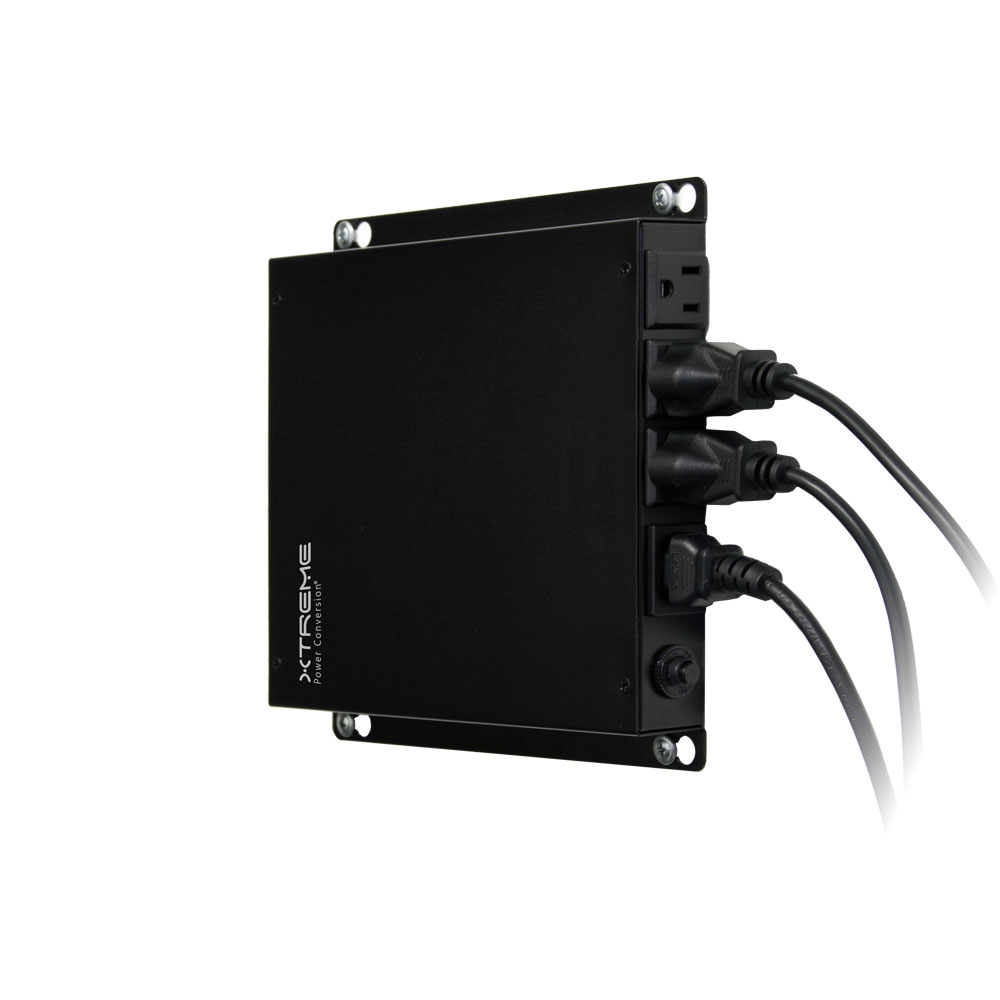

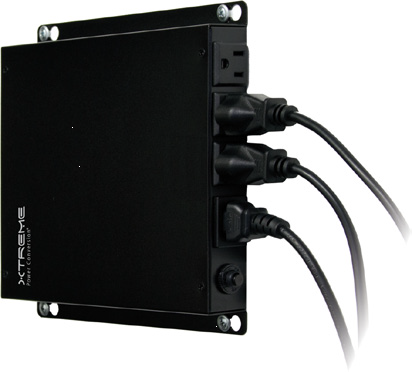

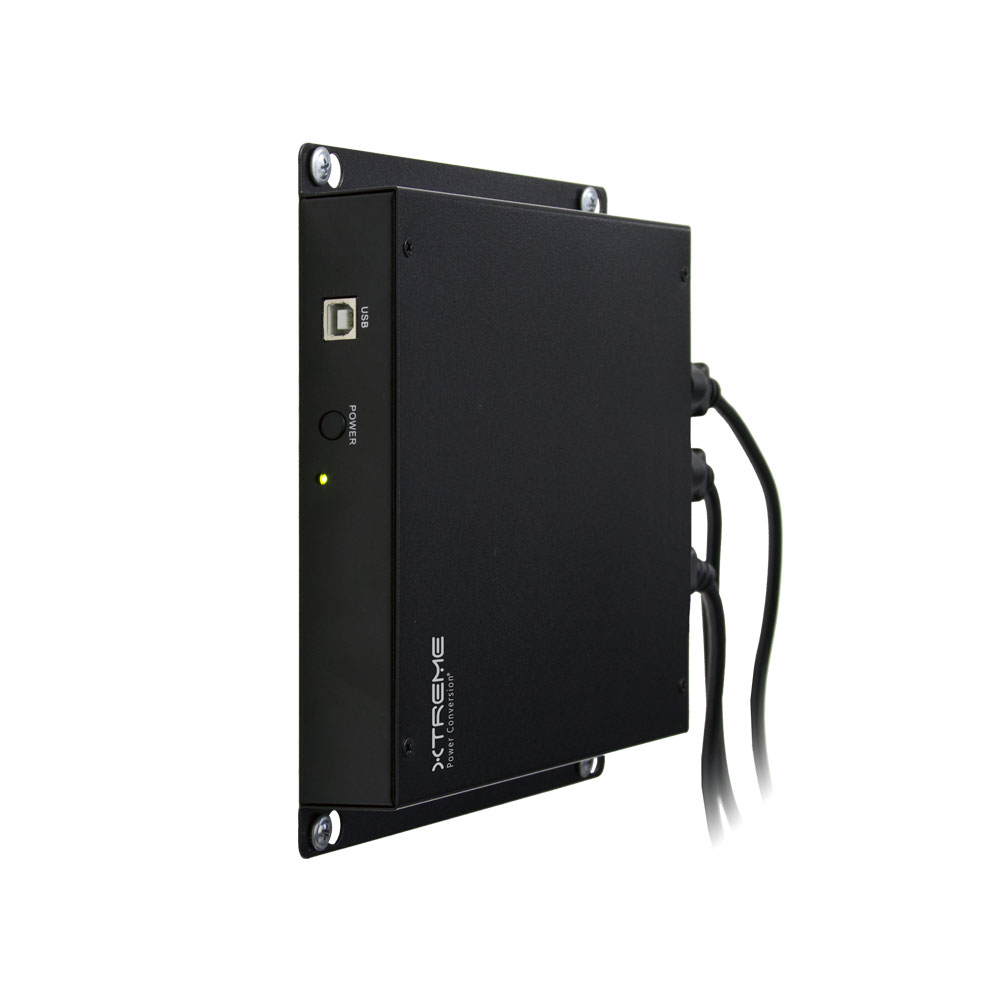

Xtreme J60 advanced design combines the benefits of lithium ion powered UPS and advanced surge suppression technology. Slim form factor (just 1.25”), wall mounting, and easy access receptacles make J60 ideal for mounting behind thin display screens in used in hotels, restaurants, hospitals, campuses, airports and other commercial areas.

While J60’s compact design is appealing to the digital signage industry, it is also excellent for providing protection to kiosks, gaming machines, computers, point-of-sale equipment, and small printers. The J60 will easily fit where conventional UPS will not.

Product Snapshot

 Slim and light weight (1.25” and 3.4 lbs) the J60 mounts easily behind flat panel displays
  • Power outage protection from 6 minutes to hours
  • Lithium batteries provide high temperature performance with long term reliability
  • UL-1778, cTUVus, FCC, RoHSCE, RoHS, TAA compliant (120V)
    CE, RoHS, TAA compliant (230V)
  • Brackets allow easy mounting to wall, ceiling or any flat surface
  • Primary applications: digital signage, kiosks, gaming machines, and Point of Sale (POS)
  • 5 years electronics, 5 years battery warranty (USA and Canada)

FEATURES

Long Life BatteryLiFePO4 batteries provide protection for up to 8-10 years or 2000 discharges

Web/SNMP Card optional external card provides monitoring of critical UPS parameters, alarms and status (600VA only)

Output Power Control — optional Web/SNMP card provides remote on/off control of J60 output power to reboot loads (600VA only)

Environmental Monitoring— optional Environmental Monitoring Device provides temperature and humidity monitoring (600VA with Web/SNMP only)

Highest Efficiency—J60 operates at up to 98% efficiency saving utility costs and reducing heat output

Auto restart—after full battery discharge, the J60 automatically restarts when utility power returns

Redundant BMS
600VA models includes
dual redundant Battery Management Systems insuring cell voltage balancing, current sharing, and protection from over-charge/discharge. 350VA models include single BMS

Mounting brackets—allows J60 to mount on walls, under counters, or inside enclosures


MODEL NUMBER

J60-350

J60i-350

J60-600

J60i-600

CAPACITY

Power rating

350VA (200W)

350VA (200W)

600VA (360W)

600VA (360W)

INPUT

Voltage

120VAC

230VAC

120VAC

230VAC

Frequency

50/60Hz

OUTPUT

Voltage

120VAC

230VAC

120VAC

230VAC

Waveform

Sine wave (normal), simulated sine wave (battery mode)

Frequency

50/60Hz

Surge suppression

312 joules

Transfer time

2-6 ms (typical)

BATTERY

Battery type

Lithium Iron Phosphate (LiFePo4)

Battery quantity and size

(8) LiFePO4 18650 cells, 2400mAh

(16) LiFePO4 18650 cells, 4400mAh

PHYSICAL

Dimensions (W x D x H)

6.9 x 8.5 x 1.25 in* (175 x 216 x 32 mm)

7.3 x 10.8 x 1.6 in (185 x 275 x 40 mm)

Weight

3.4 lbs (1.5 kg)

4.7 lbs (2.1 kg)

Line cord

Detachable 5–15P to C13

C14 inlet

Detachable 5–15P to C13

C14 inlet

Receptacles

(3) 5–15R

(2) IEC C13

(3) 5–15R

(2) IEC C13

ENVIRONMENT

Temperature

32–104°F (0–40°C)

Humidity

0–90%

Altitude

11,500 ft above sea level

COMMUNICATIONS

Standard communications

USB Interface including cable and software

RS-232 port provides communication and power for optional webcard

INTERFACE

Web/SNMP card option

N/A

External Web/SNMP card providing UPS monitoring and receptacle On/Off control

Environmental monitoring device

N/A

Measures temperature and humidity (requires Web/SNMP card option)

APPROVALS

UL-1778, cTUVus, FCC, RoHSCE, RoHS, TAA compliant (120V) CE, RoHS, TAA compliant (230V)

WARRANTY

5 years electronics, 5 years battery warranty (USA & Canada)**

AVAILABLE OPTIONS

Web/SNMP card (600VA), Environmental Monitoring Device (600VA), power cord with offset/ right angle 5-15P plug (120V units only)

INCLUDED IN BOX

ViewPower CD, user manual, 5–15P to C13 line cord (120VAC units only)

*Wall mount brackets add 15mm to each side. **Warranty outside of USA & Canada is 3 years.

BATTERY RUNTIMES

(Runtimes are shown in minutes and will vary based on battery age and site conditions.)
